Specification
Brand | Fortinet |

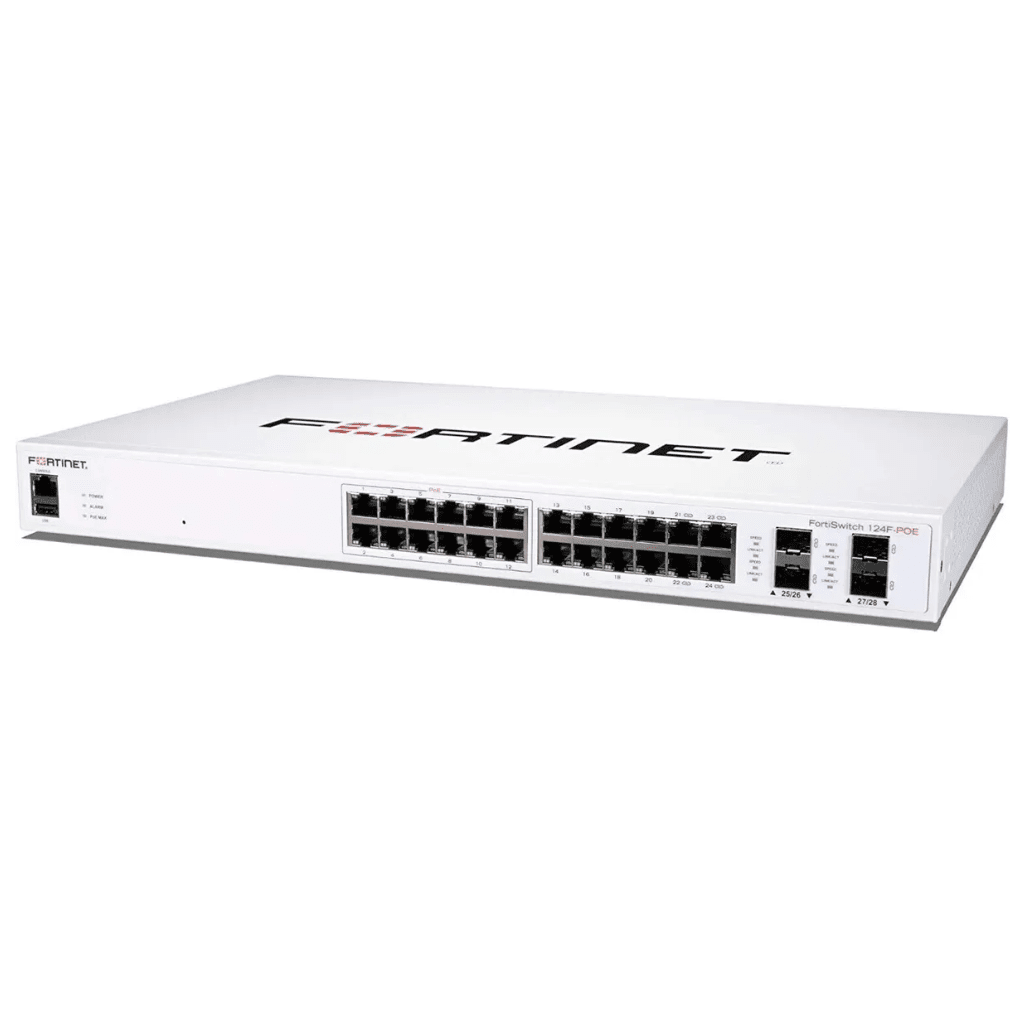

Model | FortiSwitch 124F-POE - switch |
Part Number | FortiSwitch 124F |
General
Device Type | Gigabit Ethernet Switch |
Interface (Buy) Type | Switching capacity: 128 Gbps ¦ Packets per second: 190 Mpps ¦ Latency: < 1 µs |
PCI Specification Revision | VLANs supported: 4000 ¦ Link aggregation groups: 8 |
Performance
RAM | 512 MB DDR3 SDRAM |
Flash Memory | 64MB |
Form Factor
Form Factor | Side to back airflow rack-mountable 1U |
EXPANSION / CONNECTIVITY
Expansion Slots | Interfaces 24 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 management |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) |
Width 13 in Depth 10.2 in Height 1.7 in Weight 7.85 lbs |
Weight | 12.1 lbs (5.5 kg) |
NETWORKING
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
Connectivity Technology | Virtual interfaces (VLANs) : 4094 |
Data Link Protocol | 24ports support |
Data Transfer Rate | S2500-24P: 128 Gbps/95 Mpps |
Features | Maximum number of instances : 64 |
MISCELLANEOUS
Mix Features |
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, 2MB packet buffer, 802.1x authentication, Storm Control, LLDP-MED, STP BPDU Guard, VLAN Tagging Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz |
POWER
Power Options |
Power Device Internal power supply Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 237.4 Watt |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
