Specification
Brand | HPE |

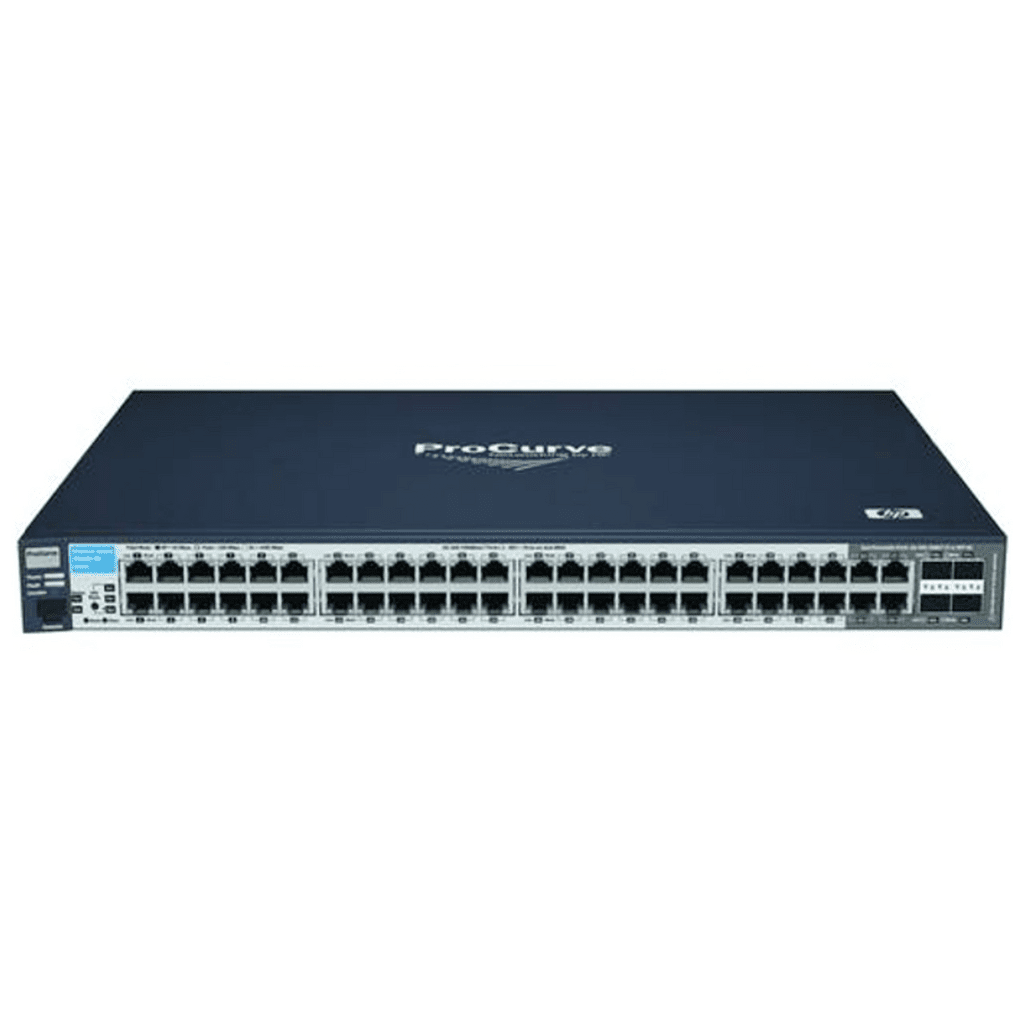

Model | Procurve 3500yl-48G POE Switch |
Part Number | J8693A |
General
Device Type | 1 RJ-45 console port to access limited CLI port |
Interface (Buy) Type | 40 Gigabit Ethernet speeds |
Performance
Cache Size | Ppacket buffer size: 1.5MB |
RAM | 256MB SDRAM |
Flash Memory | 128MB |
Form Factor
Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
Expansion Slots |
Ports: 1 open module slot; 44 autosensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) with PoE or an open mini-GBIC slot (for use with mini-GBIC transceivers); Supports a maximum of 4 10-GbE ports, with optional module Host ports: Supports a maximum of 4 10-GbE ports. |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) |
Width: 16.93 inch Depth: 17.44 inch Height: 1.73 inch |
Weight | 16.09 lb (7.3 kg) |
NETWORKING
Ports | 1 open module slot; 44 autosensing 10/100/1000 ports |
Connectivity Technology | Wired |
Data Link Protocol | Switch fabric speed: 153.6 Gbps |
Data Transfer Rate | Routing/switching capacity: 149.8 Gbps |
Features | LAN Base |
MISCELLANEOUS
Mix Features |
1 open module slot 44 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T Gigabit Ethernet) with PoE or an open mini‑GBIC slot (for use with mini-GBIC transceivers) Supports a maximum of 4 10GbE ports, with optional module |
POWER
Power Options |
Power consumption: 705 Watt Power consumption (standby): 142 Watt Input frequency: 50 / 60 Hz Input operating current: 10.0 / 5.0 A Power supply PoE: 398 Watt Input voltage: 100-127 / 200-240 Volt AC |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
