Specification
| Brand | Lenovo |

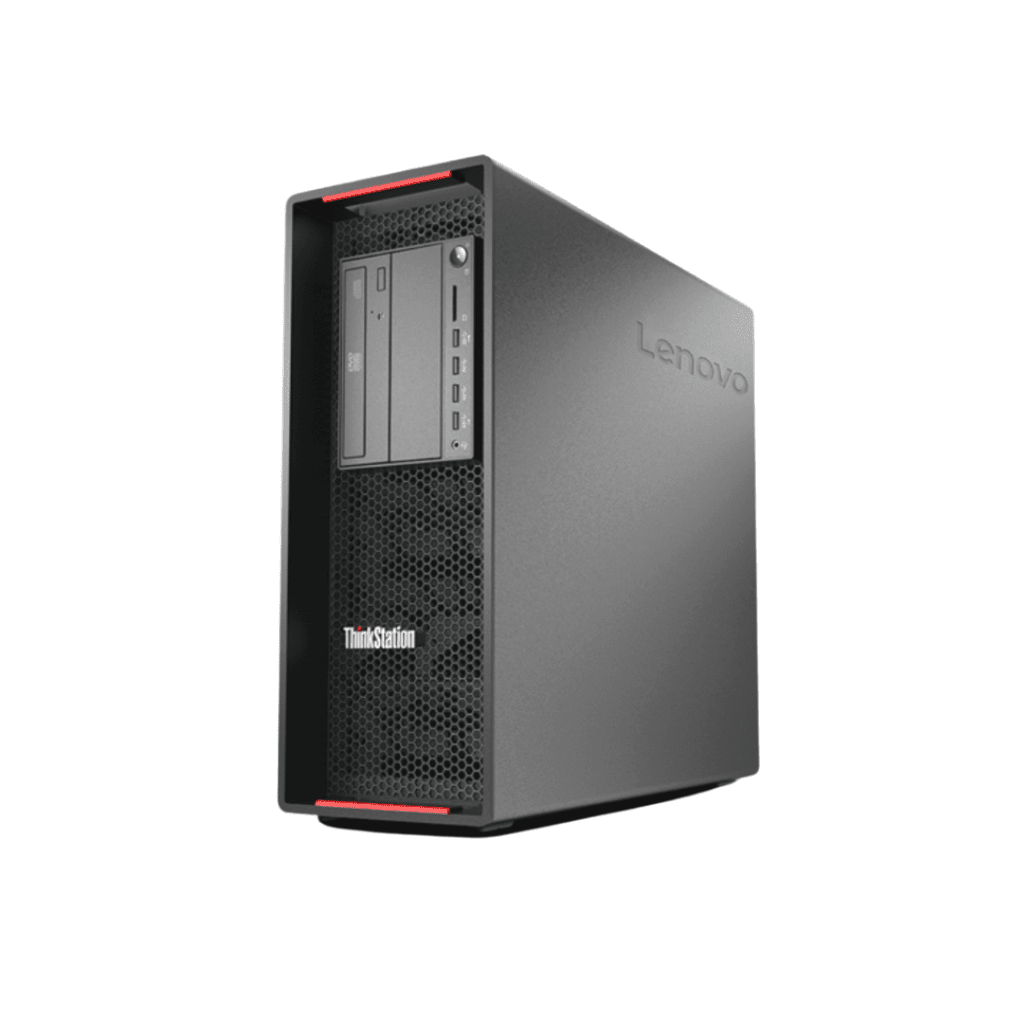

| Model | ThinkStation P510 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Tower |
Processor
| CPU Information |
Intel® Xeon® E5-1620 V4 Quad-Core Total Cores 4 Total Threads 8 Max Turbo Frequency 3.80 GHz Processor Base Frequency 3.50 GHz Cache 10 MB Intel C612 Platform Controller Hub (PCH) |
Memory
| Installed Memory | 16GB DDR4 |
| Memory Type |
16GB of 2400 MHz DDR4 ECC Registered RAM Total Installed Memory 16 GB Maximum Memory Capacity 256 GB Memory Slot Type 288-Pin DIMM 8 DIMM slots RDIMM, ECC, DDR4 Up to 2400MHz Buffered Memory Yes ECC Memory Yes |
Hard Disk
| Storage Option |
Supports one of the following: RAID 0, 1, 5, 10 with onboard SATA controller in chipset, SATA 6Gb/s. RAID 0, 1, 5, 10 with optional LSI RAID flex adapter, 12Gb/s SAS and SATA. RAID 0, 1, 5, 6, 10 with optional LSI 9364-8i PCIe adapter, 1GB memory, 12Gb/s SAS and SATA |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter |
Installed Graphic Card Nvidia Quadro K2000 2GB (GDDR5) Two PCIe 3.0 x16 slots for graphics and GPU computing adapters. Up to two NVIDIA Quadro M5000 SLI. SUPPORTING GRAPHICS AND GPU COMPUTING NVS 310 NVS 315 NVS 510 NVS 810 Quadro K420 Quadro K620 Quadro K1200 Quadro K2200 Quadro K4200 Quadro K5200 Quadro M2000 Quadro M4000 Quadro M5000 Quadro M6000 Quadro P5000 Quadro P6000 Tesla K40 |
EXPANSION / CONNECTIVITY
| Expansion Slots |
FRONT PORTS Four USB 3.0 (one Diagnostic, one Always On) One combo audio/microphone jack (3.5mm) REAR PORTS Four USB 2.0 Four USB 3.0 One serial (9-pin) One ethernet (RJ-45) Three analog audio ports (line-in, line-out, mic-in) Two PS/2 ADD-ON PORTS Supports the following optional ports: Two IEEE 1394 (one on rear and one on front flex module) via PCIe adapter, up to one adapter per system. Two rear USB 3.0 per PCIe adapter, up to three adapters per system. One rear Thunderbolt via PCIe adapter. One front eSATA (on flex module), or one rear eSATA via cable (also needs one PCIe slot), up to one eSATA port per system. One internal USB 3.0 port via cable, cannot be intermixed with a 29-in-1 reader 2 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4 1 x PCIe 2.0 x1 1 x PCI |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options |
One fixed 490 watts, autosensing, 90%, 80 PLUS Gold qualified. One fixed 650 watts, autosensing, 92%, 80 PLUS Platinum qualified. |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) |
H: 17.32” (44.0cm) W: 6.9” (17.5cm) D: 18.5” (47cm) |
| Weight | 48.94 lb (22.2kg) max configuration |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
SERVICE & SUPPORT
| Warranty | limited 06-month warranty |
