Specification
| Brand | IBM |

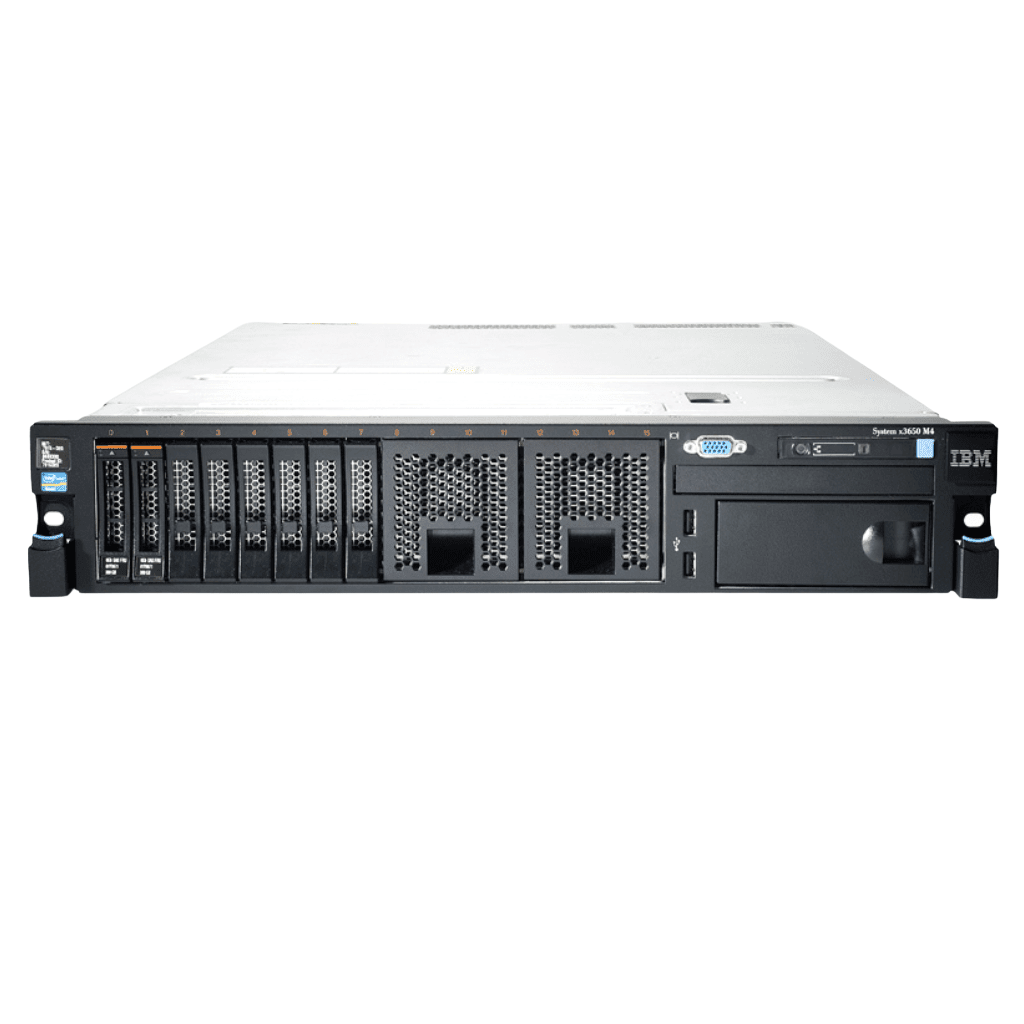

| Model | System x3650 M4 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 2U |
Processor
| CPU Information |
Up to two Intel Xeon processor E5-2600 product family CPUs with 12 cores (up to 2.7 GHz) or ten cores (up to 3.0 GHz) or eight cores (up to 3.3 GHz) or six cores (up to 3.5 GHz) or four cores (up to 3.5 GHz). Two QPI links up to 8.0 GT/s each. Up to 1866 MHz memory speed. Up to 30 MB L3 cache |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type |
Configuration Features 4 x 16 GB Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz. Memory maximums With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors With UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB DIMMs and two processors With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors Memory protection ECC, Chipkill, memory mirroring, and memory rank sparing |
Hard Disk
| Storage Option |
Up to 32 1.8" SSD bays, or 16 2.5" hot-swap SAS/SATA bays, or up to six 3.5" hot-swap SAS/SATA bays, or up to eight 2.5" Simple Swap SATA bays, or up to six 3.5" Simple Swap SATA bays. Maximum internal storage Up to 28.8 TB with 1.8 TB 2.5" SAS HDDs, up to 16 TB with 1 TB 2.5" NL SAS/SATA HDDs, up to 25.6 TB with 800 GB 1.8" SATA SSDs, up to 25.6 TB with 1.6 TB 2.5" SAS/SATA SSDs, or up to 36 TB with 6 TB 3.5" NL SAS/SATA HDDs. Intermix of SAS/SATA is supported. RAID support 6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades. 12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades. |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter |
Matrox G200eR2 with 16 MB memory integrated into the IMM2. The maximum resolution is 1600x1200 at 75 Hz with 16 M colors. |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Up to six slots depending on the riser cards installed. The slots are as follows: Slot 1: PCIe 3.0 x8; full-height, full-length Slot 2: PCIe 3.0 x8; full-height, half-length Slot 3: PCIe 3.0 x8; full-height, half-length Slot 4: Optional, requires a second processor and second riser card Slot 5: Optional, requires a second processor and second riser card Slot 6: Optional, requires a second processor and second riser card Optional riser cards are available with PCIe x8 or PCIe x16 or PCI-X slots. Two USB 2.0 and one DB-15 videos on front. Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, and two optional RJ-45 or SFP+ 10 GbE network ports on the rear. Two internal USB ports (for embedded hypervisor and internal tape drive). |
NETWORKING
| Ports | integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) |
| Connectivity Technology | two embedded 10 Gb Ethernet ports |
| Features | (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) Card |
POWER
| Power Options |
Up to two redundant hot-swap 550 W AC or 750 W AC or 900 W AC power supplies (all 80 PLUS Platinum certification) or -48V 750 W DC power supply options. |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Height: 86 mm (3.4 in), width: 445 mm (17.5 in), depth: 746 mm (29.4 in) |
| Weight | Minimum configuration: 25 kg (55 lb), maximum: 30 kg (65 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type no operating system OS Provided No operating system |
SERVICE & SUPPORT
| Warranty | limited 06-month warranty |
