Specification
| Brand | HPE |

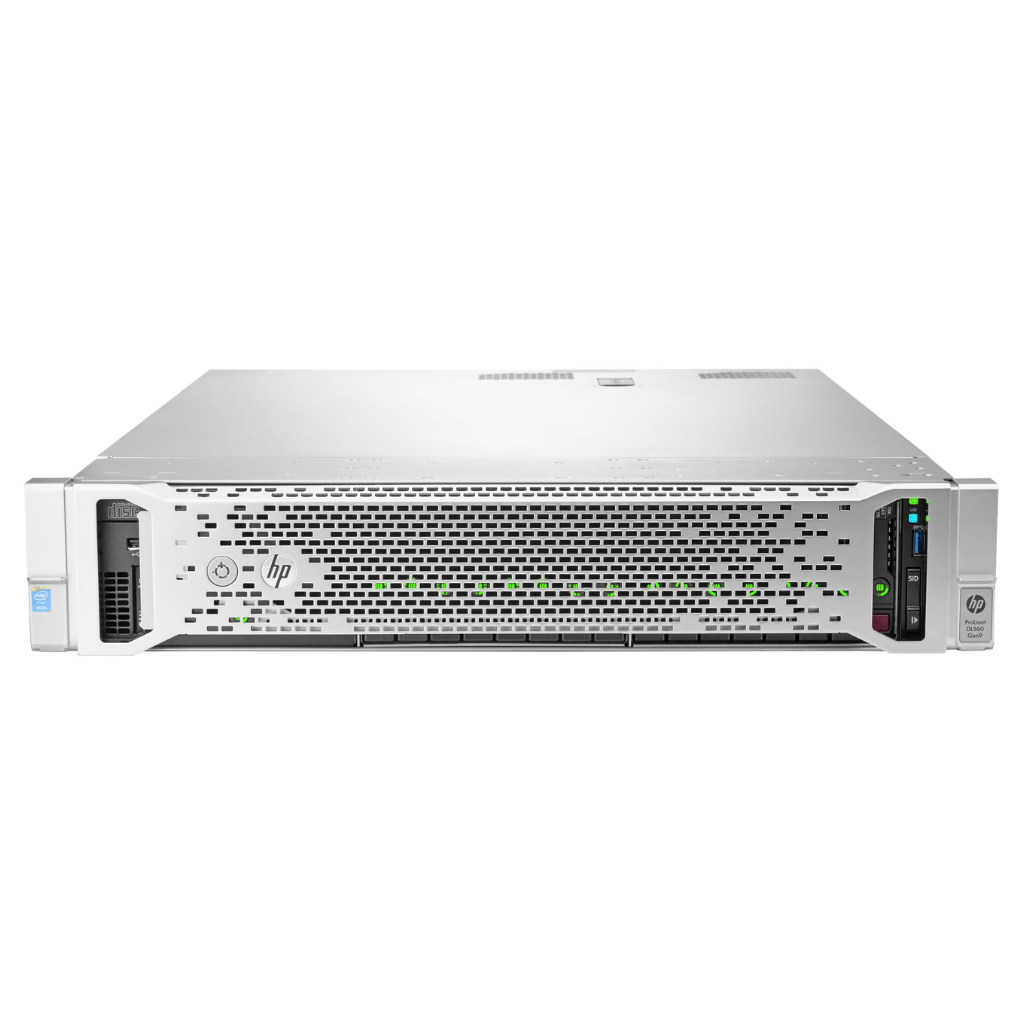

| Model | HPE DL560 Gen9 Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 2U |
Processor
| CPU Information |
Intel® C610 Series Chipset Intel® Xeon® E5-4600v4 Processor Family Intel® Xeon® E5-4600v3 Processor Family processor (One of the following depending on the model) E5-4669v3 2.1GHz 18 45MB 135W 9.6GT/s 2133 E5-4667v3 2.0GHz 16 40MB 135W 9.6GT/s 2133 E5-4660v3 2.1GHz 14 35MB 120W 9.6GT/s 2133 E5-4655v3 2.9GHz 6 30MB 135W 9.6GT/s 2133 E5-4650v3 2.1GHz 12 30MB 105W 9.6GT/s 2133 E5-4640v3 1.9GHz 12 30MB 105W 8.0GT/s 1866 E5-4627v3 2.6GHz 10 25MB 135W 8.0GT/s 2133 E5-4620v3 2.0GHz 10 25MB 105W 8.0GT/s 1866 E5-4610v3 1.7GHz 10 25MB 105W 6.4GT/s 1600 E5-4669v4 2.2GHz 22 55MB 135W 9.6GT/s 2400 E5-4667v4 2.2GHz 18 45MB 135W 9.6GT/s 2400 E5-4660v4 2.2GHz 16 40MB 120W 9.6GT/s 2400 E5-4655v4 2.5GHz 8 30MB 135W 9.6GT/s 2400 E5-4650v4 2.2GHz 14 35MB 105W 9.6GT/s 2400 E5-4640v4 2.1GHz 12 30MB 105W 8.0GT/s 2133 E5-4627v4 2.6GHz 10 25MB 135W 8.0GT/s 2400 E5-4620v4 2.1GHz 10 25MB 105W 8.0GT/s 2133 E5-4610v4 1.8GHz 10 25MB 105W 6.4GT/s 1866 Cache Memory One of the following depends on the model 55MB (1 x 55MB) Level 3 cache NOTE: With the E5-4669v4 processor. 45MB (1 x 45MB) Level 3 cache NOTE: With the E5-4667v4 and E5-4669v3 processors. 40MB (1 x 40MB) Level 3 cache NOTE: With the E5-4660v4 and E5-4667v3 processors. 35MB (1 x 35MB) Level 3 cache NOTE: With the E5-4650v4 and E5-4660v3 processors. 30MB (1 x 30MB) Level 3 cache NOTE: With the E5-4640v4, E5-4655v4, E5-4650v3, E5-4640v3, and E5-4655v3 processors. 25MB (1 x 25MB) Level 3 cache NOTE: With the E5-4610v4, E5-4620v4, E5-4627v4, E5-4620v3, E5-4627v3, and E54610v3 processors. |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type |
Up to 48 DIMM slots available for higher Memory capacity Type HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) DIMM Slots Available 48 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel) Maximum Capacity (LRDIMM) 6TB 48 x 128GB LRDIMM @2400MHz Maximum Capacity (RDIMM) 1.5TB (48 x 32GB RDIMM @2400 MHz) |
Hard Disk
| Storage Option |
HPE Smart Array P420i/ZM (RAID 0/1/1+0) standard Hard Drive Bays hot-plug SFF SAS/SATA HDD Bays in Entry and Base Models 8 hot-plug SFF SAS/SATA HDD Bays in Performance Models 16 Maximum Internal Storage Hot Plug SFF SATA 48TB 24 x 2TB Hot Plug SFF SAS 48TB 24 x 2TB Hot Plug SFF SATA SSD 92TB 24 x 3.84TB Hot Plug SFF SAS SSD 92TB 24 x 3.84TB |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter |
Integrated Matrox G200 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory • 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video) |
EXPANSION / CONNECTIVITY
| Expansion Slots |
INTERFACES Serial 1 rear Video 1 front (optional with Universal Media Bay kit); 1 rear iLO 4 Remote Management 1 Micro SD Dual Slot 1 NOTE: Requires the optional HP Dual Micro SD 8GB USB kit. USB 2.0 Ports 5 total: 2 front (optional); 2 rear; 1 internal USB 3.0 Ports 4 total: 1 front; 2 rear, 1 internal SYSTEM FANS 6 Hot Plug Fans (with N+1 redundancy) Primary Riser (Standard) expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor 1 PCIe 3.0 X16 X16 7 Full Length, Full Height Slot Proc 1 2 PCIe 3.0 X8 X8 10 Half Length, Full Height Slot Proc 1 3 PCIe 2.0 X4 X8 13 Half Length, Full Height Slot Chipset PCIe Riser (Optional 3-slot) 4 PCIe 3.0 X16 X16 16 Full Length, Full Height slot 5 PCIe 3.0 X8 X8 20 Half Length, Full Height slot 6 PCIe 3.0 X8 X8 23 Half Length, Full Height slot PCIe Riser (Optional 2-slot) 4 PCIe 3.0 X16 X16 16 Full Length, Full Height slot 5 PCIe 3.0 X16 X16 20 Half Length, Full Height slot |
NETWORKING
| Ports | HPE Ethernet 1Gb 4-port 331FLR Adapter |
POWER
| Power Options |
Type power supply HPE 1200W Common Slot Platinum Hot Plug Power Supply 2 HPE 1200W Common Slot Platinum Plus Hot Plug Power Supplies |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 3.44" (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94 cm) Length |
| Weight | 14.76 kg |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type no operating system OS Provided No operating system |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
