Processors
Power Supply
Specification
| Brand | HPE |

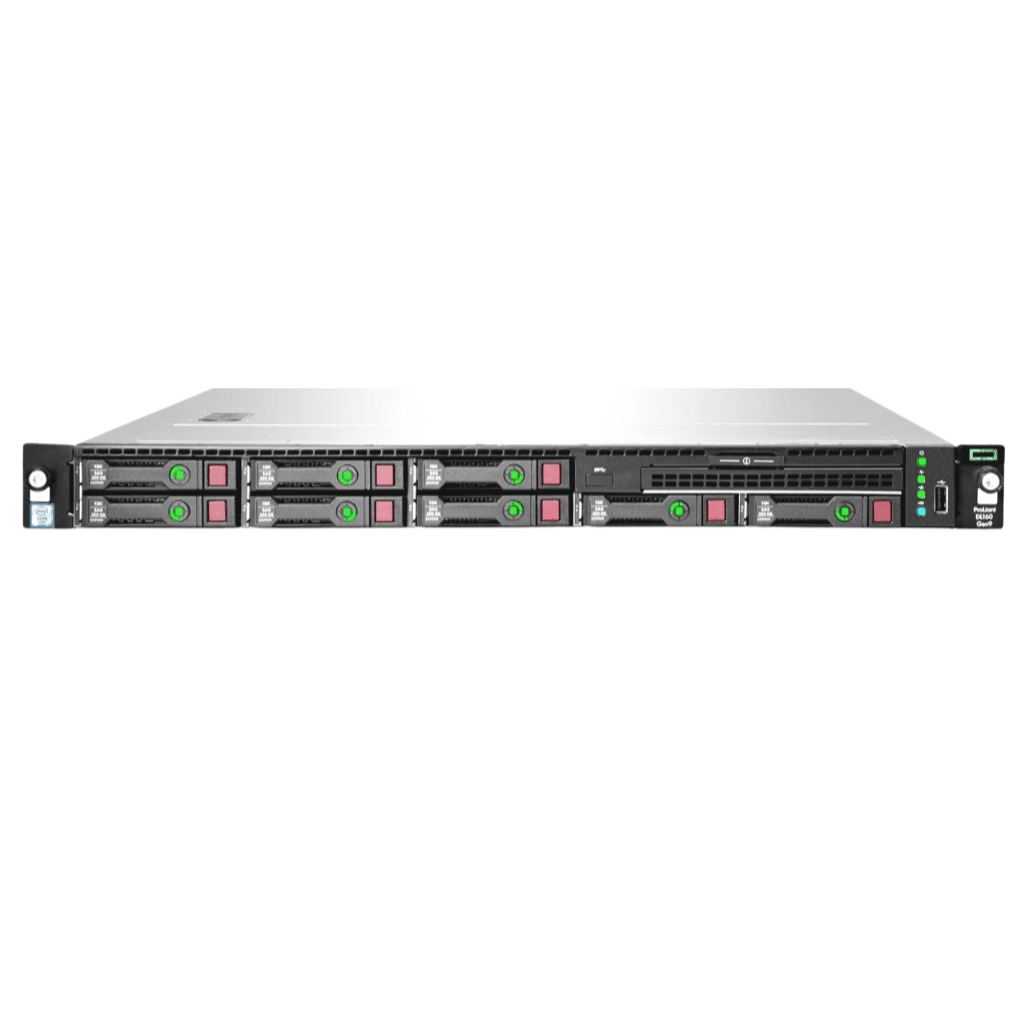

| Model | HPE DL160 Gen9 Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 1U |
Processor
| CPU Information |
Up to 2 Intel Xeon E5-2600 v3 Series, 4/6/8/10/12 cores Entry Processors - E5-2600v4 Intel Xeon E5-2620v4 (2.1 GHz/8-core/20MB/85 W) Processor Kit Intel Xeon E5-2609v4 (1.7 GHz/8-core/20MB/85 W) Processor Kit Intel Xeon E5-2603v4 (1.7 GHz/6-core/15MB/85 W) Processor Kit Intel Xeon E5-2650Lv4 (1.7 GHz/14-core/35MB/65 W) Processor Kit Intel Xeon E5-2630Lv4 (1.8 GHz/10-core/25MB/55 W) Processor Kit Intel Xeon E5-2623v4 (2.6 GHz/4-core/10MB/85 W) Processor Kit Performance Processors - E5-2600v4 Intel Xeon E5-2660v4 (2.0 GHz/14-core/35MB/105 W) Processor Kit Intel Xeon E5-2650v4 (2.2 GHz/12-core/30MB/105 W) Processor Kit Intel Xeon E5-2640v4 (2.4 GHz/10-core/25MB/90 W) Processor Kit Intel Xeon E5-2680v4 (2.4 GHz/14-core/35MB/120 W) Processor Kit Intel Xeon E5-2695v4 (2.1 GHz/18-core/45MB/120 W) Processor Kit Intel Xeon E5-2683v4 (2.1 GHz/16-core/40MB/120 W) Processor Kit Intel Xeon E5-2630v4 (2.2 GHz/10-core/25MB/85 W) Processor Kit Entry Processors - E5-2600v3 Intel Xeon E5-2609v3 (1.9 GHz/6-core/15MB/85 W) Processor Kit Intel Xeon E5-2603v3 (1.6 GHz/6-core/15MB/85 W) Processor Kit Base Processors - E5-2600v3 Intel Xeon E5-2640v3 (2.6 GHz/8-core/20MB/90 W) Processor Kit Intel Xeon E5-2630v3 (2.4 GHz/8-core/20MB/85 W) Processor Kit Intel Xeon E5-2620v3 (2.4 GHz/6-core/15MB/85 W) Processor Kit Intel Xeon E5-2630Lv3 (1.8 GHz/8-core/20MB/55 W) Processor Kit Performance Processors - E5-2600v3 Intel Xeon E5-2660v3 (2.6 GHz/10-core/25MB/105 W) Processor Kit Intel Xeon E5-2650v3 (2.3 GHz/10-core/25MB/105 W) Processor Kit Intel Xeon E5-2650Lv3 (1.8 GHz/12-core/30MB/65 W) Processor Kit |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type |
HP Smart Memory (16) DDR 4, up to 2,133 MHz (512 GB max at launch) support for NVDIMM (third party) |
Hard Disk
| Storage Option |
Storage: (8) SFF or (4) LFF –(SAS/SATA/SSD) |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter |
Integrated Matrox G200 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory • 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video) |
EXPANSION / CONNECTIVITY
| Expansion Slots | PCIe 3.0, up to 3 available slot(s) |
NETWORKING
| Ports | HPE Ethernet 1Gb 4-port 331FLR Adapter |
POWER
| Power Options |
Type power supply HPE 550 W FIO Power Supply, HPE 900 W Redundant Power Supply |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) |
Length (depth): 8 SFF/4 LFF: 23.9” (607 mm) Width: 8 SFF/4 LFF: 17.1” (434 mm) Height: 1.7” (42.9 mm) |
| Weight | Weight: 15 kg (33.04 Ib) maximum, 10 kg (22.03 lb) minimum |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type no operating system OS Provided No operating system |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
