Specification
| Brand | Hewlett Packard |

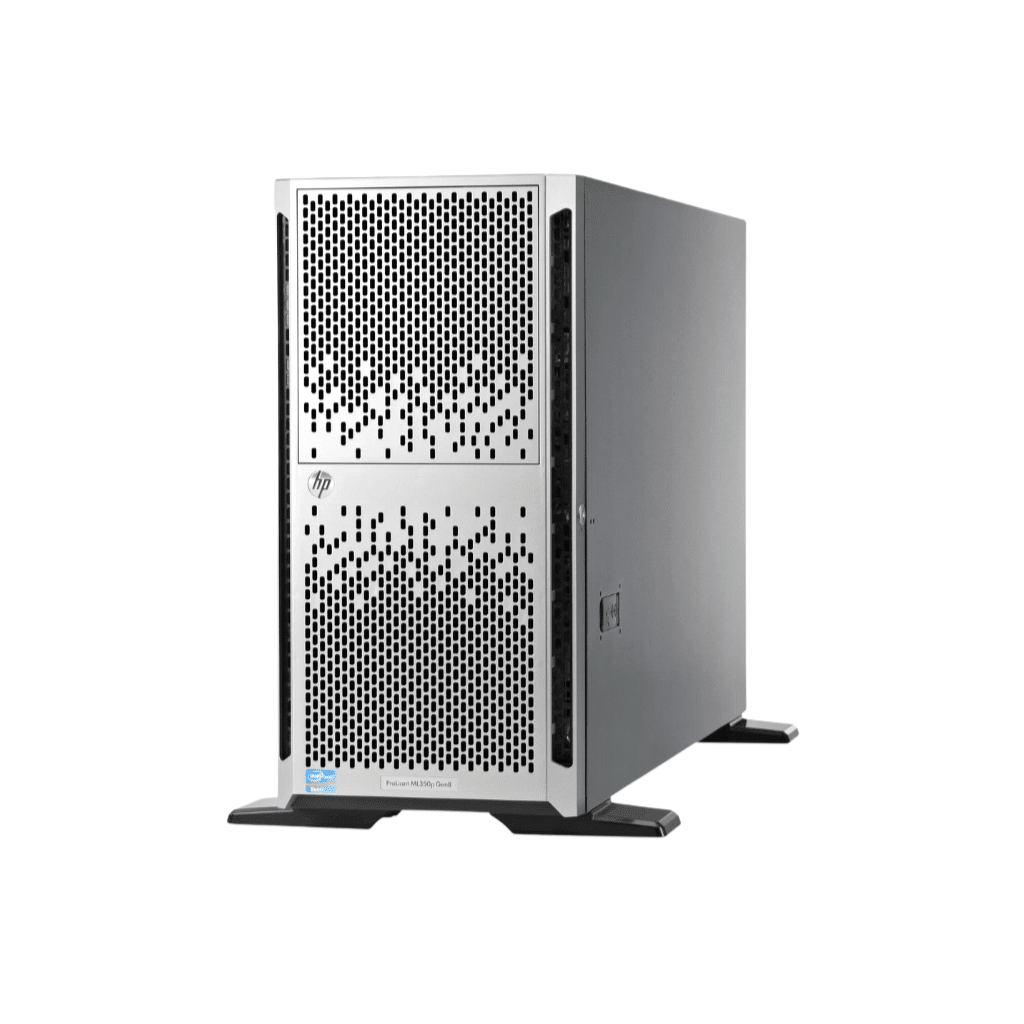

| Model | HP ML350p Gen8 Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information |
Intel® E5-2600 Processor Family Upgradeable to two processors NOTE: Total 4, 8, 12, or 16 cores Entry Processors NOTE: All support up to 1066MHz memory speeds. Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/6.4GT-s QPI/80W) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Intel® Xeon® E5-2620 (2.00GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1333, HT, Turbo2 NOTE: All support up to 1600MHz DDR3 memory speeds. Intel® Xeon® E5-2690 (2.90GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo2) Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo24/ Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2 Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2) Intel® Xeon® E5-2643 (3.30GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2 |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type |
64 GB (8 x 8 GB UDIMM @1600MHz) Type HP Smart Memory DDR3 Registered (RDIMM) or Unbuffered (UDIMM) Standard (Performance Models) 16 GB (4 x 4 GB) RDIMM Standard (Base Models)8 GB (2 x 4 GB) RDIMM Standard (Entry Models)4 GB (1 x 4 GB) RDIMM Maximum (RDIMM)384 GB (24 x 16 GB) RDIMMM Maximum (UDIMM)128 GB (16 x 8 GB) |
Hard Disk
| Storage Option |
Maximum Internal Storage One of the following depending on the model HP Smart Array P420i/1G FBWC Controller Hot Plug LFF SAS 54TB 3 x 18TB Hot Plug SFF SATA 54TB 3 x 18TB Hot Plug LFF SAS 24TB 24 x 1TB Hot Plug LFF SATA 24TB 24 x 1TB Hot Plug SFF SATA SSD 9.6TB 24 x 400GB Hot Plug SFF SAS SSD 19.2TB 24 x 800GB Hot Plug LFF SATA SSD 7.2TB 18 x 400GB |
| Installed Hard Disk | 3 x 900GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter |
Integrated Matrox G200 video standard 1280 x 1024 (32 bpp) 1920 x 1200(16 bpp) HP iLO 4 On System Management Memory 16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video) |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Serial Video 1 1 (rear) Network RJ-45 (Ethernet) 5 (1 dedicated for HP Integrated Lights-Out) iLO remote management 1 Gb Dedicated network port SD slot USB 1 (internal) 10 (4 front, 4 rear, 2 internal) |
NETWORKING
| Ports | HP 1Gb Ethernet 4-port 331i Adapter |
POWER
| Power Options |
460(750) W (at 100 VAC), 460(750) W (at 200 VAC) Maximum Peak Power 460(750) W (at 100 VAC), 460(750) W (at 200 VAC) |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 18.19 x 8.58 x 29.13 in (46.2 x 21.8 x 74.0 cm) |
| Weight | 70.33 lb (31.9 kg) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
