Specification
| Brand | Hewlett Packard |

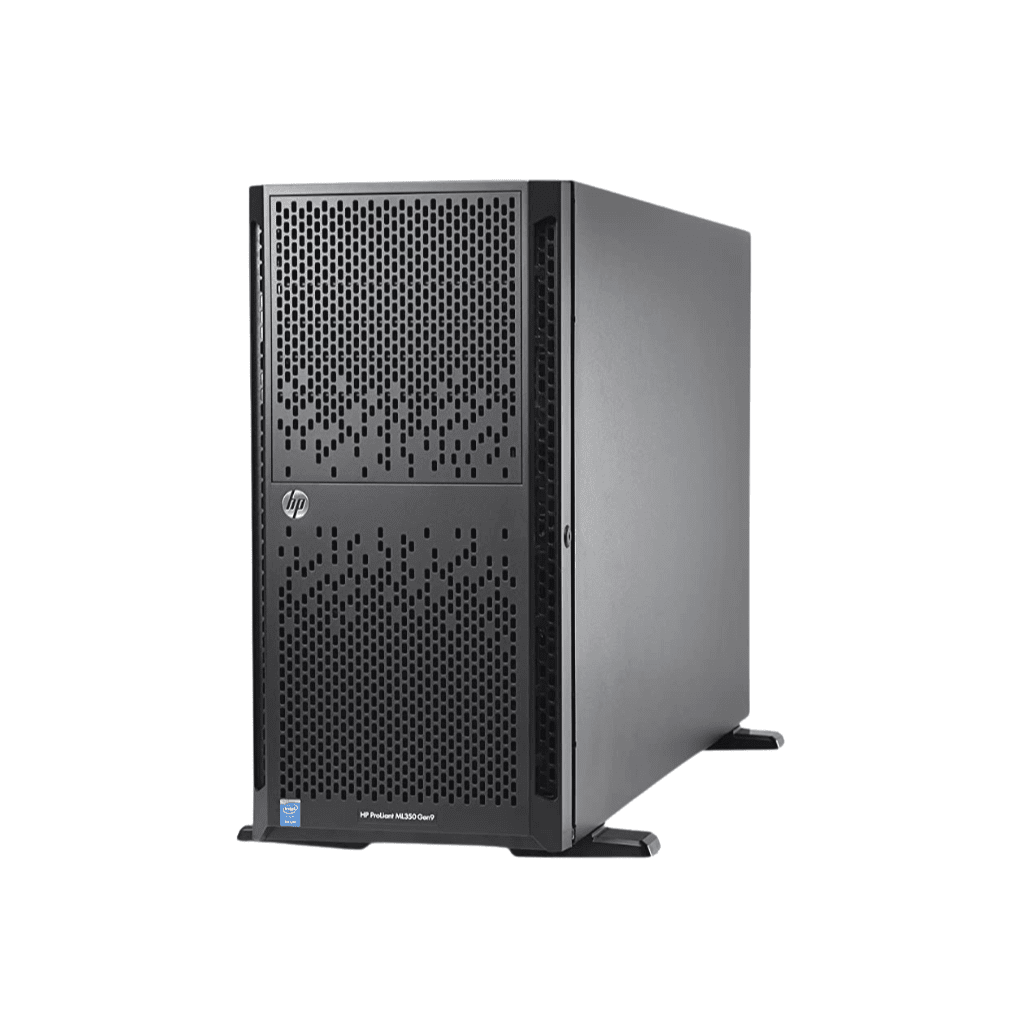

| Model | HP ProLiant ML350 Gen9 Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Tower 5U Rackable |
Processor
| CPU Information |
Intel® E5-2600 V3 Processor Family Upgradeable to two processors NOTE: Total 4, 8, 12, or 16 cores Supported Processors HP ML350 Gen9 Intel Xeon E5-2609v3 (1.9 GHz/6-core/15MB/85 W) processor kit HP ML350 Gen9 Intel Xeon E5-2609v3 (1.9 GHz/6-core/15MB/85 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2603v3 (1.6 GHz/6-core/15MB/85 W) processor kit HP ML350 Gen9 Intel Xeon E5-2603v3 (1.6 GHz/6-core/15MB/85 W) FIO kit HP ML350 Gen9 Intel Xeon E5-2640v3 (2.6 GHz/8-core/20MB/90 W) processor kit HP ML350 Gen9 Intel Xeon E5-2640v3 (2.6 GHz/8-core/20MB/90 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2630v3 (2.4 GHz/8-core/20MB/85 W) processor kit HP ML350 Gen9 Intel Xeon E5-2630v3 (2.4 GHz/8-core/20MB/85 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2620v3 (2.4 GHz/6-core/15MB/85 W) processor kit HP ML350 Gen9 Intel Xeon E5-2620v3 (2.4 GHz/6-core/15MB/85 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2630Lv3 (1.8 GHz/8-core/20MB/55 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2630Lv3 (1.8 GHz/8-core/20MB/55 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2690v3 (2.6 GHz/12-core/30MB/135 W) processor kit HP ML350 Gen9 Intel Xeon E5-2690v3 (2.6 GHz/12-core/30MB/135 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2680v3 (2.5 GHz/12-core/30MB/120 W) processor kit HP ML350 Gen9 Intel Xeon E5-2680v3 (2.5 GHz/12-core/30MB/120 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2670v3 (2.3 GHz/12-core/30MB/120 W) processor kit HP ML350 Gen9 Intel Xeon E5-2670v3 (2.3 GHz/12-core/30MB/120 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2660v3 (2.6 GHz/10-core/25MB/105 W) processor kit HP ML350 Gen9 Intel Xeon E5-2660v3 (2.6 GHz/10-core/25MB/105 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2650v3 (2.3 GHz/10-core/25MB/105 W) processor kit HP ML350 Gen9 Intel Xeon E5-2650v3 (2.3 GHz/10-core/25MB/105 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2650Lv3 (1.8 GHz/12-core/30MB/65 W) processor kit HP ML350 Gen9 Intel Xeon E5-2650Lv3 (1.8 GHz/12-core/30MB/65 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2697v3 (2.6 GHz/14-core/35MB/145 W) processor kit HP ML350 Gen9 Intel Xeon E5-2697v3 (2.6 GHz/14-core/35MB/145 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2695v3 (2.3 GHz/14-core/35MB/120 W) processor kit HP ML350 Gen9 Intel Xeon E5-2695v3 (2.3 GHz/14-core/35MB/120 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2667v3 (3.2 GHz/8-core/20MB/135 W) processor kit HP ML350 Gen9 Intel Xeon E5-2667v3 (3.2 GHz/8-core/20MB/135 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2643v3 (3.4 GHz/6-core/20MB/135 W) processor kit HP ML350 Gen9 Intel Xeon E5-2643v3 (3.4 GHz/6-core/20MB/135 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2683v3 (2 GHz/14-core/35MB/120 W) processor kit HP ML350 Gen9 Intel Xeon E5-2683v3 (2 GHz/14-core/35MB/120 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2699v3 (2.3 GHz/18-core/45MB/145 W) processor kit HP ML350 Gen9 Intel Xeon E5-2699v3 (2.3 GHz/18-core/45MB/145 W) FIO processor kit HP ML350 Gen9 Intel Xeon E5-2698v3 (2.3 GHz/16-core/40MB/135 W) processor kit HP ML350 Gen9 Intel Xeon E5-2698v3 (2.3 GHz/16-core/40MB/135 W) FIO processor kit |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type |
64 GB (8 x 8 GB UDIMM @2400MHz) HP Smart Memory (24) DDR4, up to 2,133 MHz (768 GB max.) HP 4GB (1 x 4GB) single rank x8 DDR4-2133 CAS-15-15-15 registered memory kit HP 8GB (1 x 8GB) single rank x4 DDR4-2133 CAS-15-15-15 registered memory kit HP 8GB 2Rx8 PC4-2133P-R kit HP 16GB (1 x 16GB) dual rank x4 DDR4-2133 CAS-15-15-15 registered memory kit HP 32GB (1 x 32GB) dual rank x4 DDR4-2133 CAS-15-15-15 registered memory kit Load Reduced DIMMs (LRDIMMs) for the E5-2600v3 series HP 16GB (1 x 16GB) dual rank x4 DDR4-2133 CAS-15-15-15 load reduced memory kit HP 32GB (1 x 32GB) quad rank x4 DDR4-2133 CAS-15-15-15 load reduced memory kit HP 64GB (1 x 64GB) quad rank x4 DDR4-2133 CAS-15-15-15 load reduced memory kit Registered DIMMs (RDIMMs) for the E5-2600v4 series HP 8GB (1 x 8GB) single rank x8 DDR4-2400 CAS-17-17-17 registered memory kit HP 16GB (1 x 16GB) single rank x4 DDR4-2400 CAS-17-17-17 registered memory kit HP 32GB (1 x 32GB) dual rank x4 DDR4-2400 CAS-17-17-17 registered memory kit HPE 16GB (1 x 16GB) dual rank x4 DDR4-2400 CAS-17-17-17 registered memory kit Load Reduced DIMMs (LRDIMMs) for the E5-2600v4 series HP 32GB (1 x 32GB) dual rank x4 DDR4-2400 CAS-17-17-17 load registered memory kit HP 64GB (1 x 64GB) quad rank x4 DDR4-2400 CAS-17-17-17 load registered memory kit |
Hard Disk
| Storage Option |
Maximum Internal Storage One of the following depending on the model HP Smart Array P420i/1G FBWC Controller Supported Hard Drives HP 1.2TB 6G SAS 10K rpm SFF (2.5 in) SC dual port enterprise HP 900GB 6G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 600GB 12G SAS 15K rpm SFF (2.5 in) SC Enterprise HP 600GB 12G SAS 15K rpm LFF (3.5 in) SC converter enterprise HP 600GB 6G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 450GB 12G SAS 15K rpm SFF (2.5 in) SC Enterprise HP 450GB 6G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 300GB 12G SAS 15K rpm SFF (2.5 in) SC Enterprise HP 300GB 6G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 146GB 6G SAS 15K rpm SFF (2.5 in) SC Enterprise HP 600GB 12G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 1.2TB 12G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 300GB 12G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 900GB 12G SAS 10K rpm SFF (2.5 in) SC Enterprise HP 600GB 12G SAS 15K rpm SFF (2.5 in) SC 512e enterprise HP 1.8TB 12G SAS 10K rpm SFF (2.5 in) SC Enterprise SAS Hot-plug SFF (2.5 in) Midline (MDL) drives SAS Hot-plug LFF (3.5 in) Enterprise (ENT) drives SAS Hot-plug LFF (3.5 in) MDL drives SATA Hot plug SFF (2.5 in) MDL drives SATA Hot-plug LFF (3.5 in) MDL drives 12G SAS Hot-plug SFF (2.5 in) enterprise value SSD 6G SATA Hot plug SFF (2.5 in) enterprise value SSD 6G SATA Hot plug SFF (2.5 in) enterprise boot SSD 6G SATA Hot-plug LFF (3.5 in) enterprise mainstream SSD |
| Installed Hard Disk | 3 x 900GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter |
Integrated Matrox G200 video standard 1280 x 1024 (32 bpp) 1920 x 1200(16 bpp) HP iLO 4 On System Management Memory 16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video) |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Serial Video 1 1 (rear) Network RJ-45 (Ethernet) 5 (1 dedicated for HP Integrated Lights-Out) iLO remote management 1 Gb Dedicated network port SD slot USB 1 (internal) 10 (4 front, 4 rear, 2 internal) |
NETWORKING
| Ports | HP 1Gb Ethernet 4-port 331i Adapter |
POWER
| Power Options |
For 800 W Power Supply: 800 W (at 100 V ac), 800 W (at 240 V ac), 800W (at 240 V ac) input for China only |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 46.4 x 21.9 x 76.9 cm (18.27 x 8.62 x 30.28 in) |
| Weight | 30 kg (66.14 lb) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
