Processors
Power Supply
Specification
| Brand | HP |

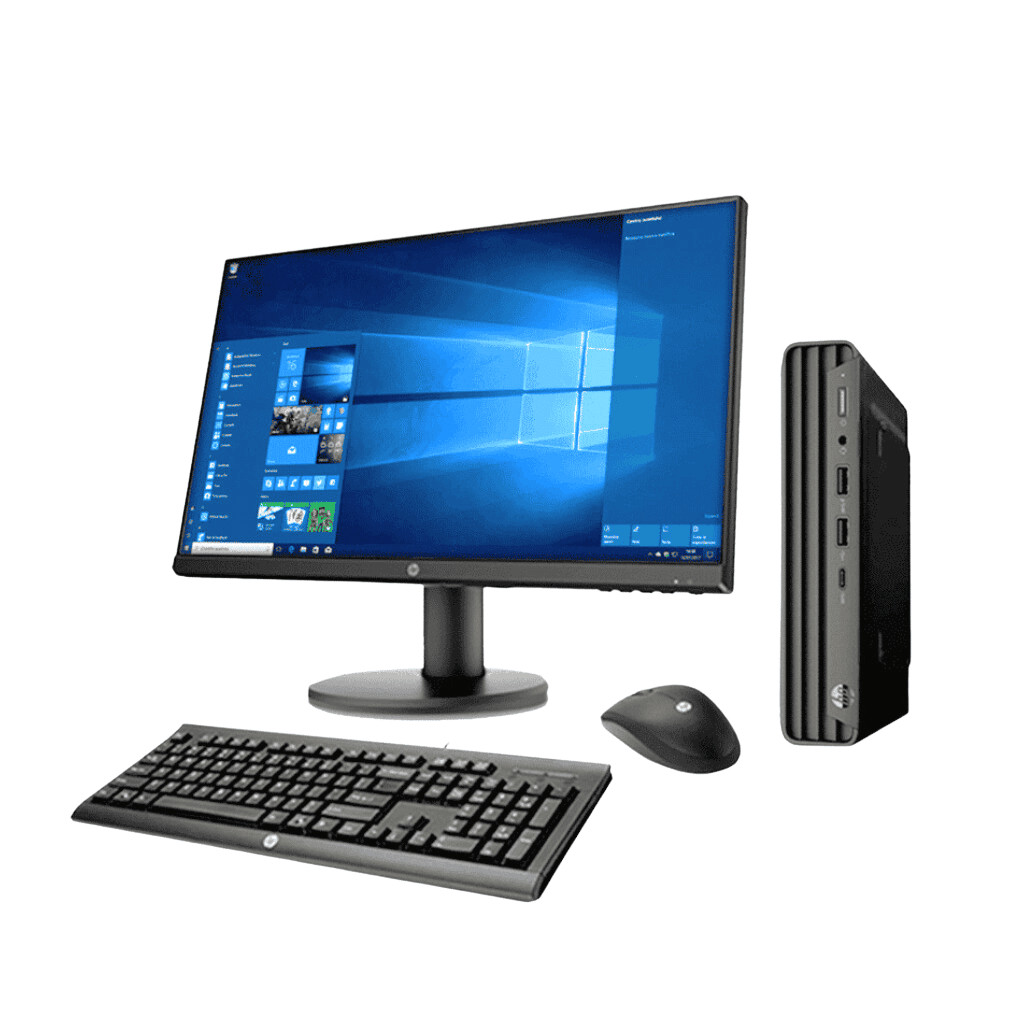

| Model | HP 260 G4 Desktop Mini PC |
Product Type
| Product type | Desktop Mini PC |
Form Factor
| Form Factor | Desktop Mini PC |
Processor
| CPU Information |
Intel Core Core i3-10110U (10th Gen) Supported Processors 4, 6, 8, Core support Intel Core i5,Core i7 processor Up to 4.1 GHz with Intel Turbo Boost Technology (2.1 GHz base frequency) 4 MB cache and 2 cores, 8 Threads Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 25 W TDP Intel vPro Technology |
Memory
| Installed Memory | 8GB DDR4 |
| Memory Type |
Maximum 32 GB Configurations 4 GB (4 GB x 1) 8 GB (4 GB x 2) 8 GB (8 GB x 1) 16 GB (8 GB x 2) 16 GB (16 GB x 1) 32 GB (16 GB x 2) |
Hard Disk
| Storage Option |
SATA Hard Disk Drives 500 GB 7200 RPM SATA HDD (2.5 in) 1 TB 7200 RPM SATA HDD (2.5 in) 2 TB 5400 RPM SATA HDD (2.5 in) Solid State Drives (SSD) 256 GB M.2 2280 PCIe NVMe SSD 512 GB M.2 2280 PCIe NVMe SSD 128 GB M.2 2280 PCIe NVMe TLC SSD 256 GB M.2 2280 PCIe NVMe TLC SSD 512 GB M.2 2280 PCIe NVMe TLC SSD 1 TB M.2 2280 PCIe NVMe TLC SSD |
| Installed Hard Disk | HDD 500GB |
GRAPHICS CONTROLLER
| Display Adapter |
Intel UHD Graphics 630 (for 10th gen Core i7/i5/i3 processors and Pentium Gold G6600, G6500 and G6500T) |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Front I/O ports and button (1) USB 3.2 Gen 2 Type-C port (charge support up to 5 V/3 A) (1) USB 2.0 Type-A port (1) USB 3.2 Gen 1 Type-A port (charge support up to 5 V/1.5 A) (1) Headphone/microphone combo jack (1) Power button Rear I/O ports (2) USB 3.2 Gen 1 Type-A ports (2) USB 2.0 Type-A ports (supports wake from S4/S5 with keyboard/mouse connected and enabled in BIOS) (1) VGA port (1) HDMI 1.4 port (1) RJ-45 Ethernet port (1) Serial (RS-232) port (1) Power input port Configurable non-PCIe/PCI Slot (1) Serial (RS-232) port (must be configured at time of purchase) Internal slots and Ports (1) M.2 PCIe x1 2230 (for WLAN) (1) M.2 PCIe x4 2280 (for storage) (1) Integrated SATA storage connector NOTE: For Desktop Mini with M.2 Storage configurations, there is no SATA drive bracket. To use or upgrade the storage with any 2.5 in SATA drive, select a DM SATA Drive Bracket. |
NETWORKING
| Ports | Realtek RTL8111HSH-CG Gigabit Network Connection |
POWER
| Power Options |
Operating voltage range 90 Vac to 264 Vac |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 177.0 x 175.0 x 34.2 mm (6.97 x 6.89 x 1.35 in) |
| Weight | 1.25 kg (2.74 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
SERVICE & SUPPORT
| Warranty | limited 06-month warranty |
