Specification
| Brand | Dell |

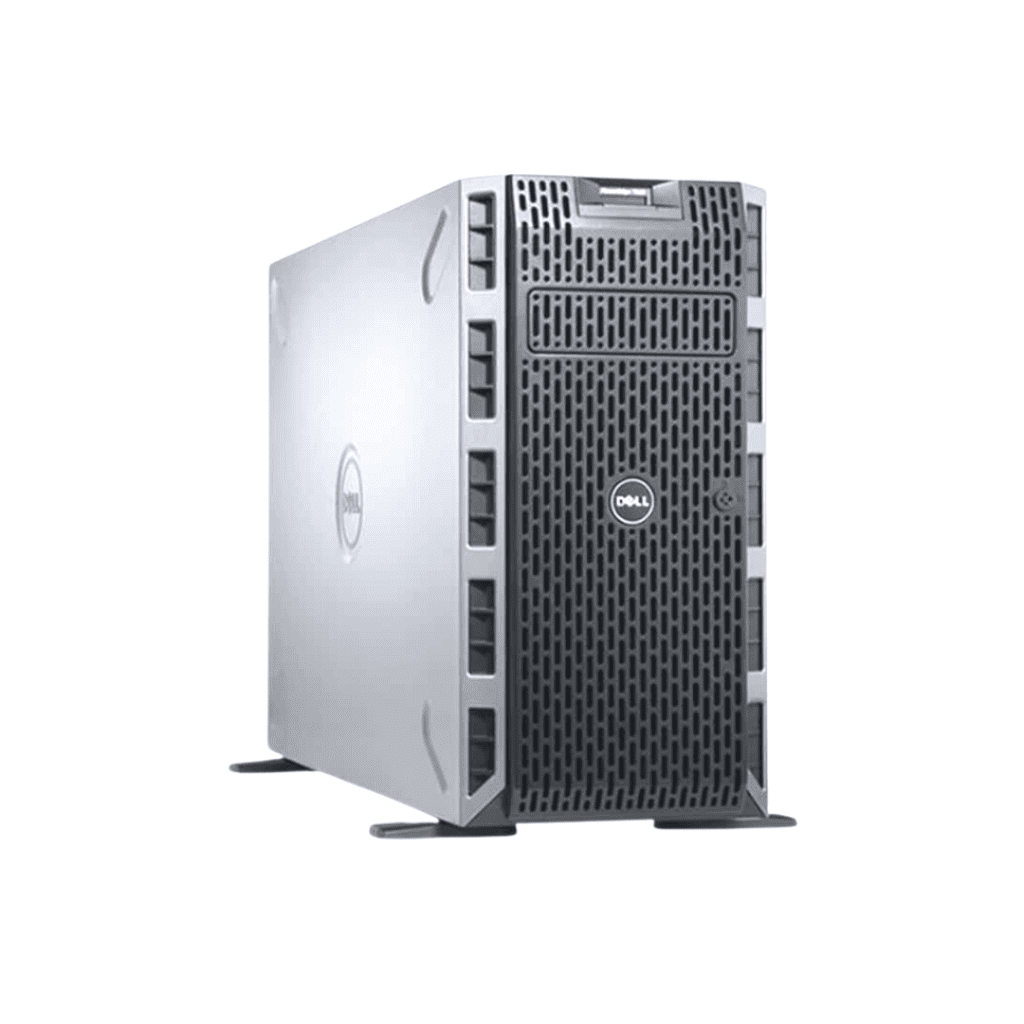

| Model | Dell PowerEdge T620 Tower Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Tower 5U Rackable |
Processor
| CPU Information |
Processor Intel® Xeon® processor E5-2600 or E5-2600v2 product family Processor Sockets: 2 Internal Interconnect: 2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12 Chipset Intel C602 |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Up to 768GB (24 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1866MT/s |
Hard Disk
| Storage Option |
Storage Maximum Internal Storage: Up to 48TB Hard Drives Hot-plug hard drive options: 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K) 3.5” nearline SAS (7.2K), SATA (7.2K), SAS (15K) Self-Encrypting Drives available DRIVE BAYS 8 3.5” hot-swap drive bays plus four PCIe SSD drives (optional) 12 3.5” hot-swap drive bays 16 2.5” hot-swap drive bays plus four PCIe SSD drives (optional) 32 2.5” hot-swap drive bays Hard Drives: Up to 8x 3.5" SAS/SATA HDD/SSD drives Up to 12x 3.5" SAS/SATA HDD/SSD drives Up to 16x 2.5" SAS/SATA HDD/SSD drives Maximum Internal Storage: 8x 3.5" - Up to 96TB (NL-SAS/SATA) / 4.8TB (SAS) / 30.72TB (SSD) 12x 3.5" - Up to 144TB (NL-SAS/SATA) / 7.2TB (SAS) / 46.08TB (SSD) 16x 2.5" - Up to 32TB (NL-SAS/SATA) / 38.4TB (SAS) / 61.44TB (SSD) |
| Installed Hard Disk | 3 x 900GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Slots 7 PCIe slots: Four x16 slots with x16 bandwidth, full-length, full-height Two x8 slots with x8 bandwidth, full-length, full-height One x8 slot with x4 bandwidth, full-length, full-height Chassis Form factor: tower (5U rackable) Please note: chassis choice required at time of purchase |
NETWORKING
| Ports | Embedded NIC4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC |
POWER
| Power Options |
Titanium efficiency 750W power supply Platinum efficiency 495W, 750W, or 1100W power supplies Auto-ranging power supplies |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | H: 8.73 cm (3.44 in), W: 44.40 cm (17.49 in), D: 68.40 cm (26.92 in) |
| Weight | 29.5kg (64.9lbs) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 01-month warranty |
