Specification
| Brand | Dell |

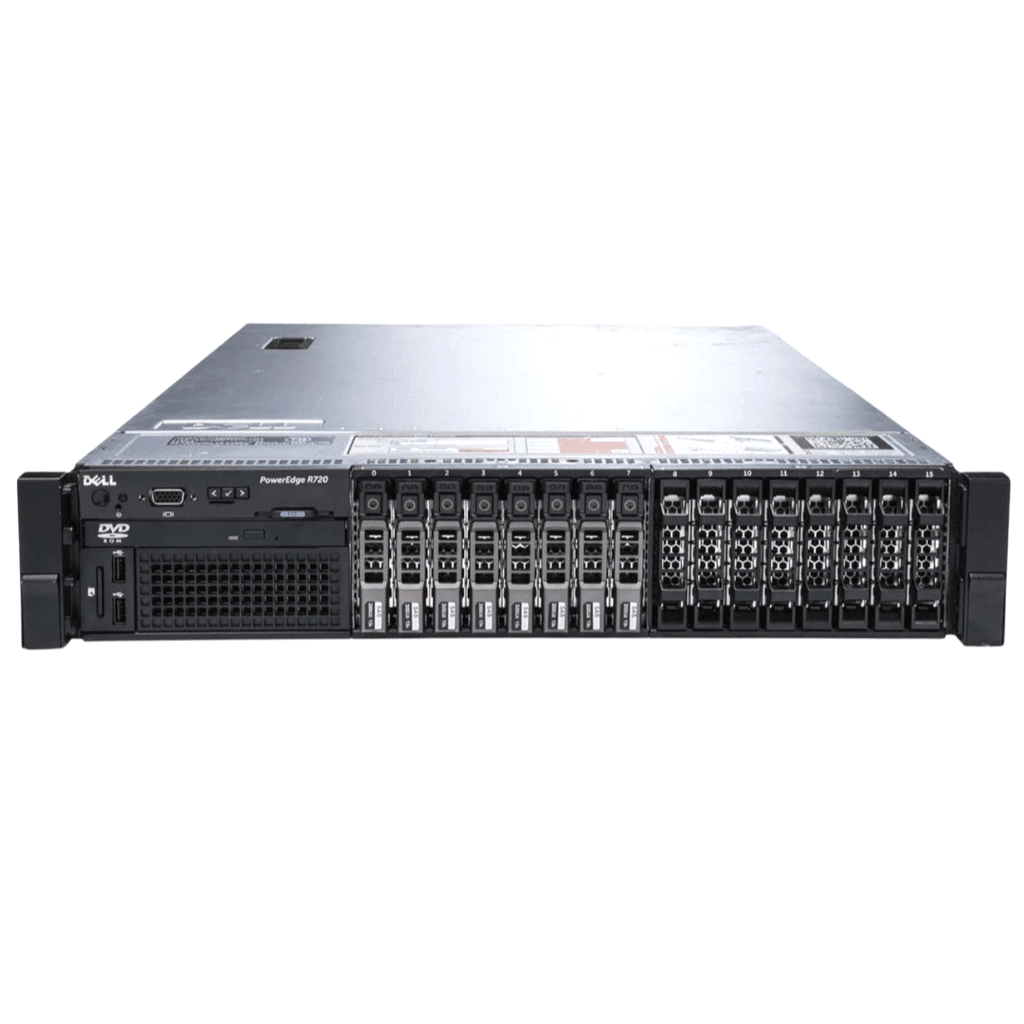

| Model | Dell PowerEdge R720 Rack Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 2U |
Processor
| CPU Information |
Processor Intel® Xeon® processor E5-2600 or E5-2600v2 product family Processor socket: 2 Internal Interconnect: 2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12 Chipset Intel C600 |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Up to 1.5TB (24 DIMM slots) 2GB/4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s |
Hard Disk
| Storage Option |
Up to 8 x 3.5" SATA or SAS; 16 x 2.5" SATA or SAS drives Storage Maximum Internal Storage: 32TB Hot-plug hard drive options: 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K) Self-Encrypting Drives available RAID controller Internal controllers: PERC S110 (software RAID; R720 only) PERC H310 PERC H710 PERC H710P External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA R720 drive bay options: Up to 16 x 2.5“ Up to 8 x 2.5” + 8 x 2.5” (with dual RAID controllers) Up to 8 x 2.5” Up to 8 x 2.5” + 4 x 2.5” Express Flash2 or up to 8 x 3.5” R720xd drive bay options: Up to 24 x 2.5” (front) + 2 x 2.5” (back) or Up to 12 x 3.5” (front) + 2 x 2.5” (back) Hard drive options: 2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) 2.5” Express Flash PCIe SSD2 (R720 only) 3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives (SEDs) available |
| Installed Hard Disk | 3 x 300GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Slots 7 PCIe slots: One x16 full-length, full-height Three x8 full-length, full-height Three x8 half-length, half-heigh |
NETWORKING
| Ports | NIC: 4 x 1 Gigabit Ethernet or 2 x 10 Gigabit SFP + 2 x 1 Gigabit Ethernet |
POWER
| Power Options |
Auto-ranging, Platinum efficiency 495W, 750W, 1100W AC or Gold efficiency 1100W DC2 |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 482.4mm 444.0mm 87.3mm 32.0mm 18.0mm 684.0mm 723.0mm |
| Weight | 29.5kg (64.9lbs) |
OPERATING SYSTEM
| Pre Install Os |
OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
