Specification
| Brand | Dell |

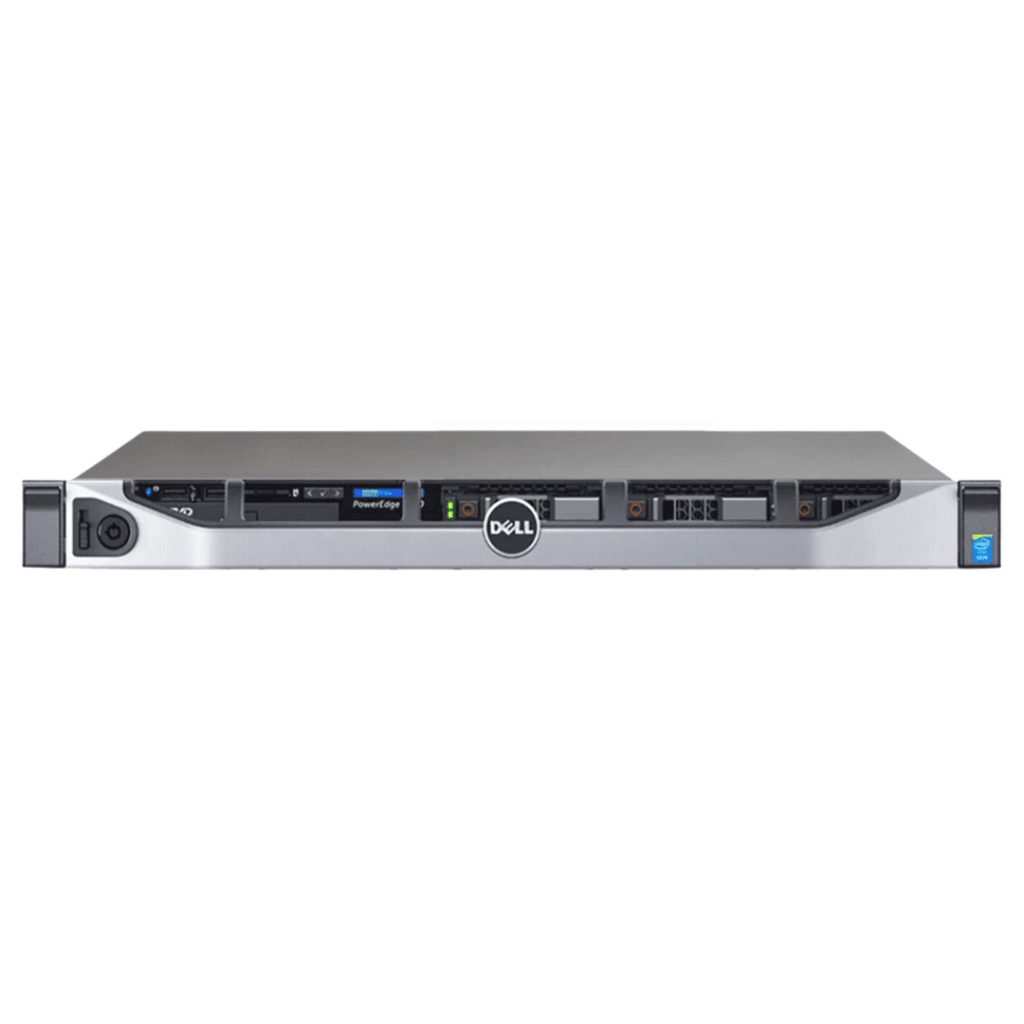

| Model | Dell PowerEdge R620 Rack server |
| Part Number | Dell PowerEdge R620 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 1U Rack Server |
Processor
| CPU Information | Intel® Xeon® processor E5-2600 or E5-2600 v2 product family Installed Qty 2 Max Supported Qty 2 Processor Base Frequency 2.3Ghz Max Turbo Frequency 3.0 GHz Number of Cores 20 64-bit Computing Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel C602 Internal Interconnect: 2 x Intel QuickPath Interconnect (QPI); 6.4 GT/s; 7.2 GT/s; 8.0 GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12 |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Up to 1.5TB (24 DIMM slots) 2GB/4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s |
Hard Disk
| Storage Option | Storage Maximum internal storage: Up to 10TB Hot-plug hard drive options: 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K) Self-Encrypting Drives available RAID Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 PERC H710P External HBAs (RAID): PERC H810 External HBAs (non RAID): 6Gbps SAS HBA |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter | integrated |
EXPANSION / CONNECTIVITY
| Expansion Slots | 3 PCIe slots: Two x16 slots with x16 bandwidth, half-height, half-length One x16 slot with x8 bandwidth, half-height, half-length (ten-drive-bay configuration is available only with a 3 PCIe slot option) or 2 PCIe slots: One x16 slot with x16 bandwidth, full-height, 3/4 length One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length |
NETWORKING
| Ports | Broadcom® 5720 quad-port 1GbE Base-T |
| Features | Intel X540 dual-port 10GbE Base-T with 2 x 1GbE |
POWER
| Power Options | Platinum Power Supplies : 2x 495W Dual, Hot-plug, Redundant Power Supply Installed Qty 2 Max Supported Qty 2 Min Operating Temperature 50 °F Max Operating Temperature 95 °F |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 8-drive bay chassis 482.4mm 434.0mm 42.8mm 35.0mm 20.4mm 682.7mm 701.3mm 10-drive bay chassis 482.4mm 434.0mm 42.8mm 35.0mm 20.4mm 731.0mm 752.1mm |
| Weight | Maximum 18.6Kg (40.96lb) 19.8Kg (43.56lb) Empty chassis 8.z6Kg (18.92lb) 9.4Kg (20.66lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type no operating system Contact Sales Rep for more details |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
