Processors
Power Supply
Specification
| Brand | Dell |

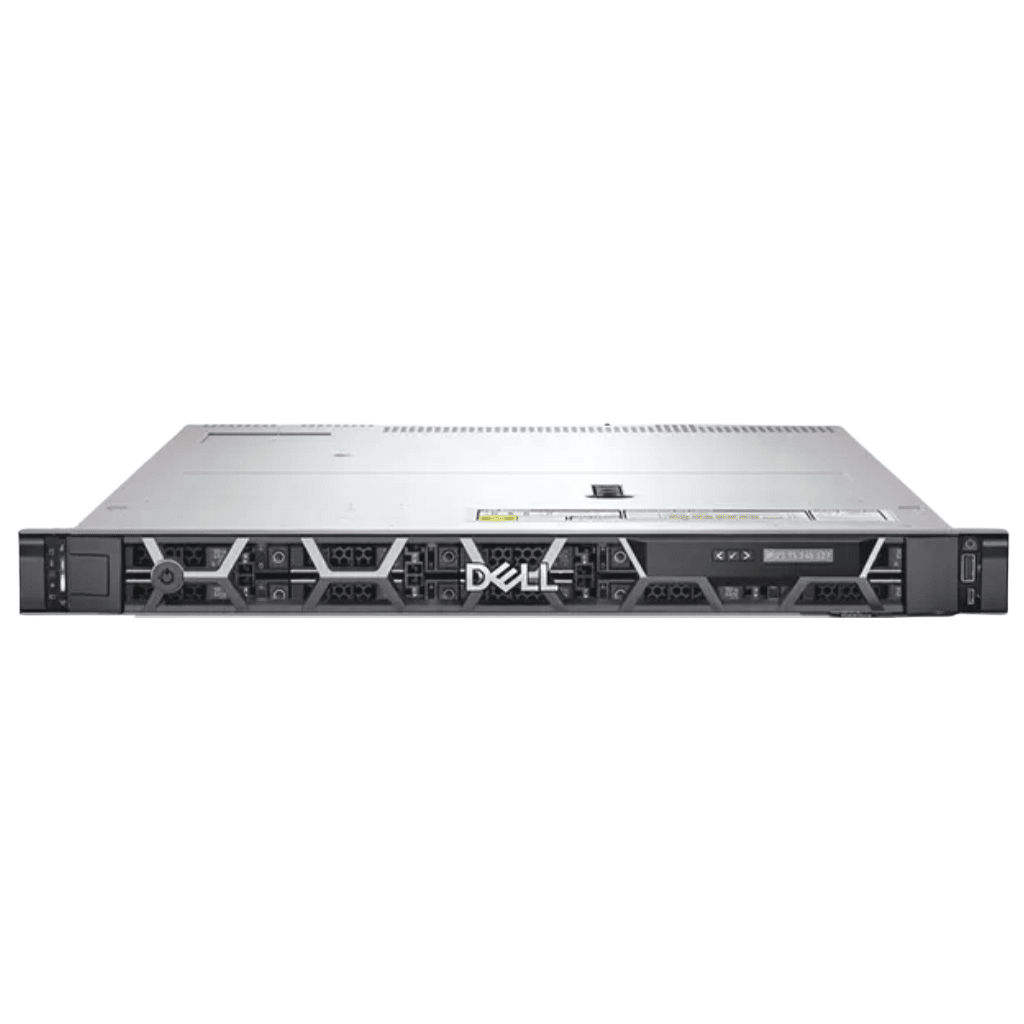

| Model | Dell PowerEdge R240 Rack Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 1U Rackable |
Processor
| CPU Information | 1 processor from the following: Intel® Xeon® E-2200 product family |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | 4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC |
Hard Disk
| Storage Option | Up to 4 x 3.5 cabled SATA, SAS (optional) or SSD* Up to 4 x 3.5 or 2.5 hot-plug SATA, SAS (optional) or SSD* *available in the hot-plug configuration |
| Installed Hard Disk | 3 x 300GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots | 2 x PCIe Gen 3.0 slots: • One x8 slot low-profile, half-length with x4 slot width • One x16 slot low-profile/full-height, half-length with x8 bandwidth 2 x 1GbE LOM Network Interface Controller (NIC) ports Front ports: 1x USB 2.0, 1 x IDRAC micro USB 2.0 management port Rear ports: 2 x USB 3.0, VGA, serial connector |
NETWORKING
| Ports | Broadcom® 5720 |
POWER
| Power Options | Single 250W (Bronze) or 450W (Platinum) power supply4 |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Chassis width: 434.00mm (17.08 in) Chassis depth: 573.596mm (22.58 in) (3.5” HDD config) Note: These dimensions do not include: a bezel, redundant PSU |
| Weight | Chassis weight: 12.2 kg (26.89 lb.) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
