Specification
| Brand | Cisco Systems Inc |

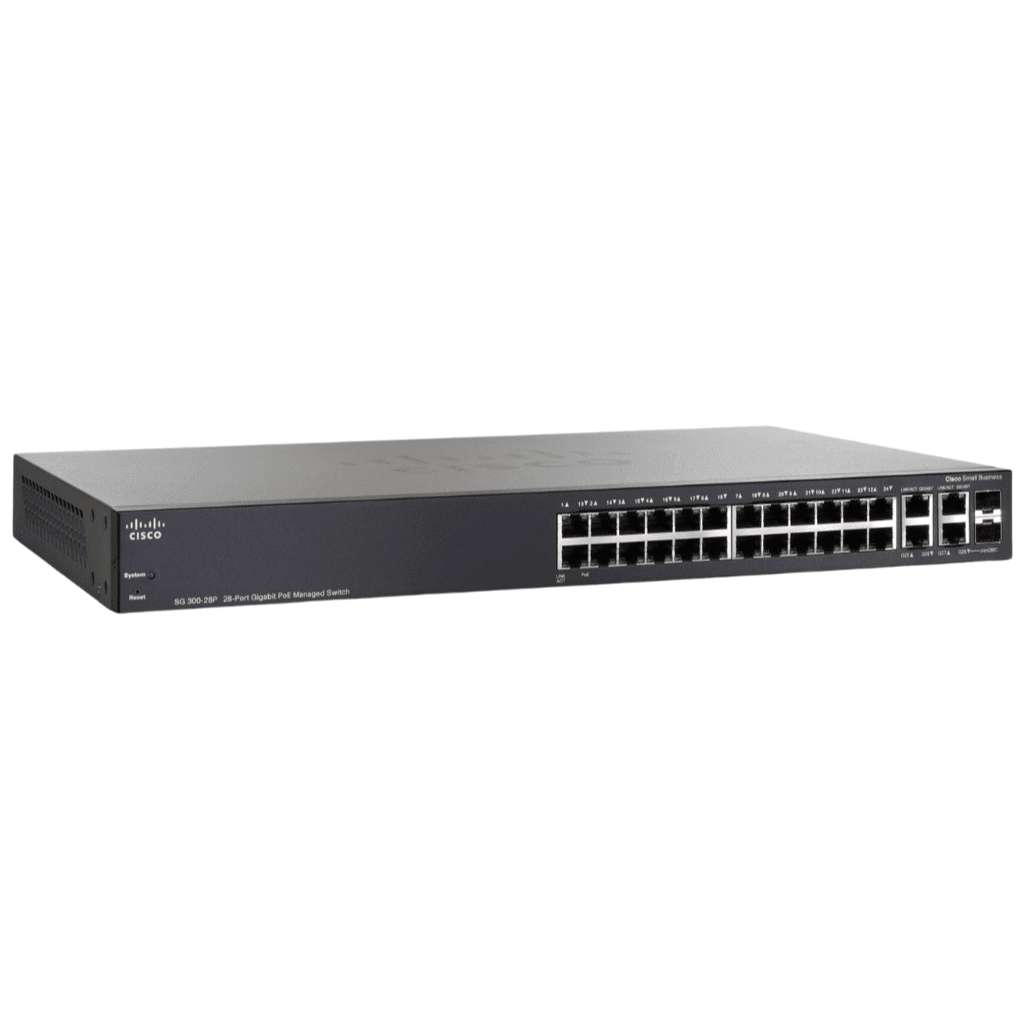

| Model | Cisco SG300-28PP 28 Port Gigabit PoE+ Managed Switch |
| Part Number | Cisco SG300-28PP |
General
| Device Type | witch-28 ports-L3-Managed |
Performance
| RAM | 128MB SDRAM |
| Flash Memory | 16MB |
Form Factor
| Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Number of Total Expansion Slots: 2 Expansion Slot Type: SFP (mini-GBIC) Shared SFP Slot: Yes Number of SFP Slots: 2 Layer Supported: 3 Manageable: Yes Media Type Supported: Twisted Pair Optical Fiber Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T 1000Base-X I/O Expansions |
| Interfaces | Switching capacity 56 Gbit/s |
| Compatible Slots | Combo Ports (RJ-45 + SFP): 2 x Gigabit Ethernet Combo |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) |
Height: 1.5" Width: 17.3" Depth: 10.1" |
| Weight | Weight (Approximate): 8.71 lb |
NETWORKING
| Ports | 24 × Ethernet 10/100/1000 ports |
| Connectivity Technology | Network Technology: 10/100/1000Base-T, 1000Base-X |
| Data Link Protocol | Forwarding performance (64-byte packet size) 41.7 Mpps |
| Features | LAN Base |
MISCELLANEOUS
| Mix Features |
Color black, hematite Features Setup Password, USB port control, audio ports control, network port control, power-on password, serial port I/O control Compliant Standards ACPI 2.0c, RoHS, WEEE Manufacturer Selling Program |
POWER
| Power Options |
Power Device Internal power supply Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 55 Watt Environmental Parameters Min Operating Temperature 23 °F Max Operating Temperature 104 °F Humidity Range Operating 10 - 95% (non-condensing) Min Storage Temperature -13 °F Max Storage Temperature 158 °F Humidity Range Storage 10 - 95% (non-condensing) |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
