Specification
| Brand | Cisco Systems Inc |

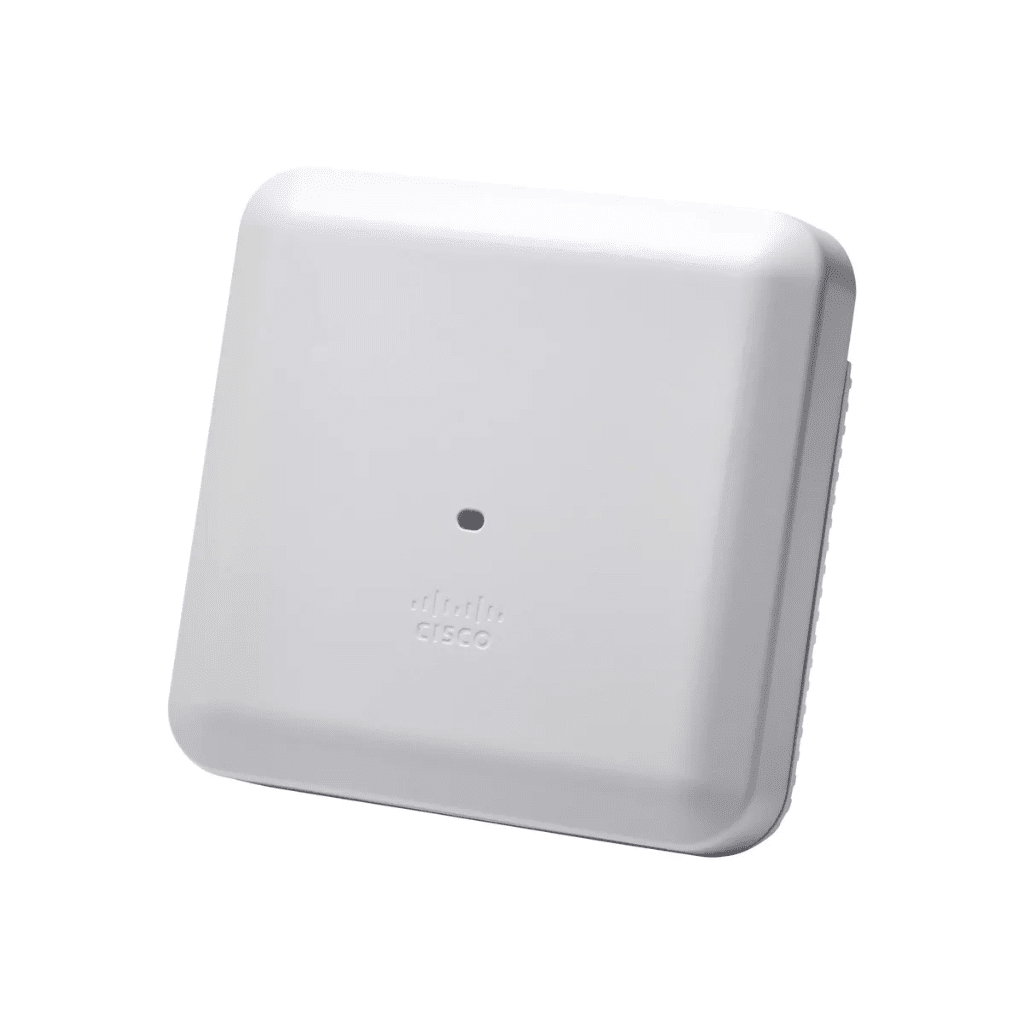

| Model | Cisco Aironet AIR-AP3802i-s-K9 |
| Part Number | AIR-AP3802i-s-K9 |
General
| Device Type | Wireless access point |
| Interface (Buy) Type | 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45) |
Performance
| RAM | 1024MB SDRAM |
| Flash Memory | 256MB |
Form Factor
| Form Factor | External |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Networking Protocol: Gigabit Ethernet Networking Protocol: IEEE 802.11n Networking Protocol: IEEE 802.11ac Networking Protocol: IEEE 802.11a Networking Protocol: IEEE 802.11b Networking Protocol: IEEE 802.11g |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm) |
| Weight | 4.6 lb (2.09 kg) |
NETWORKING
| Ports | 2×100/1000/2500/5000 Multigigabit Ethernet (RJ-45) |
| Connectivity Technology | Wireless |
| Data Link Protocol | Supports Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g Networking |
| Data Transfer Rate | Data Transfer Speeds up to 5.2Gbps |
| Features | 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
MISCELLANEOUS
| Mix Features |
Wi-Fi Alliance Certified ● Wi-Fi Certified a, b, g, n, ac ● Wi-Fi Vantage ● WMM ● Passpoint Integrated antenna Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
POWER
| Power Options |
802.3at power injector (AIR-PWRINJ6) 50W power supply (AIR-PWR-50=) |
SERVICE & SUPPORT
| Warranty | limited 01-month warranty |
