Specification
| Brand | Avaya Inc. |

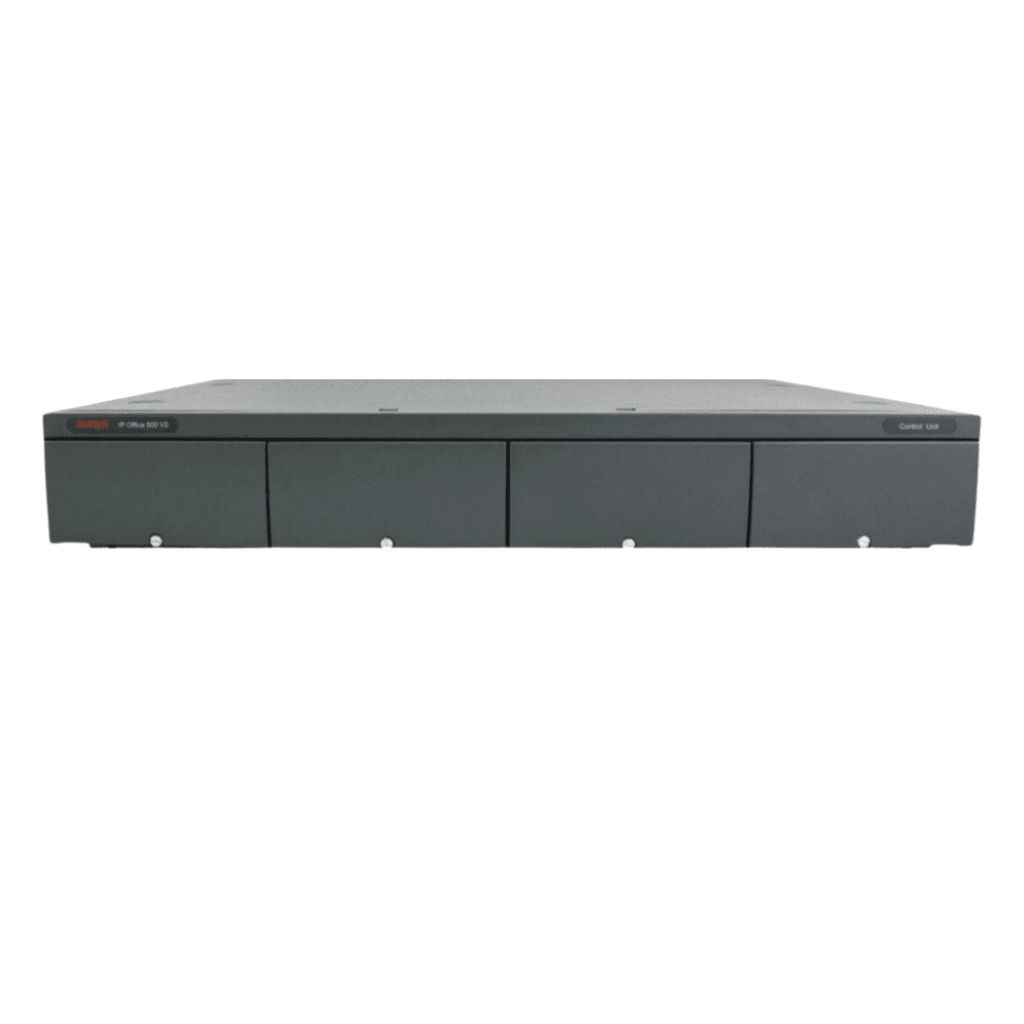

| Model | IP Office 500 V2 |
| Part Number | 700476005 |
General
| Device Type | IP Control Unit |
| Interface (Buy) Type | Support up to 272 telephones and 8 T1/E1 trunks |
Form Factor
| Form Factor | Rack-mountable - 2U |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Expansion Slot(s) 8 expansion modules 192 T1/PRI channels or 240 E1 channels Optional support for up to 128 voice compression channels is available. |
| Interfaces | Wired |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 47 cm x 43.8 cm x 8.9 cm |
| Weight | 17.82 Kg |
NETWORKING
| Connectivity Technology | Wired |
MISCELLANEOUS
| Mix Features |
Avaya IP500 V2 Features 4 Base Card Slots - Can accommodate IP500 Digital Station 8, Analog Phone 2, Analog Phone 8, Combination ATM, Combination ATM V2, ETR 6, TCM 8, VCM 32, VCM 32 V2, VCM 64, VCM 64 V2, Unified Communications Module, and 4-Port Expansion base cards. Trunk Cards - Supports IP500 ATM 4, ATM 4 V2, PRI 1, and PRI 2 trunk interface cards installed on IP500 Base Cards. 2 SD Card Slots - Supports system SD card (required) and optional SD card 2 SD Card Slots - Supports system SD card (required) and optional SD card Voicemail Channels - Maximum 40 usable for Voicemail Pro/TAPI WAV connection sessions 8 Integrated Expansion Ports - Compatible with Digital Station 16/30, Phone 8/16/30, and Analog Trunk 16 external expansion modules. Support for up to 12 External Expansion Modules - In addition to the 8 integrated expansion ports, you can add up to 4 additional expansion ports using the 4-Port Expansion base card. 2 LAN Ports - Full duplex 10/100 Mbps; managed layer 3 Ethernet switch Additional Ports - Music on-hold, DTE port, external relay switch for door entry controls, integral WAN port Includes Power Cord Avaya IP500 V2 System SD Card required (not included) |
Compatibility Information
| compatibility |
Compatibility The Avaya IP500 V2 Control Unit is compatible with the above base cards and external expansion modules Compatible with 1400, 2400, 5400, 6400, and 9500 series digital phones (configuration and SW level dependent) Compatible with 1600, 4600, 5600, and 9600 series IP phones (configuration and SW level dependent) IP Office 9.0 and later supports IP500 V2 control unit and the Avaya Branch Gateway as a single product |
POWER
| Power Options | Internal PSU |
SERVICE & SUPPORT
| Warranty | limited 01-month warranty |
