Specification
| Brand | Avaya |

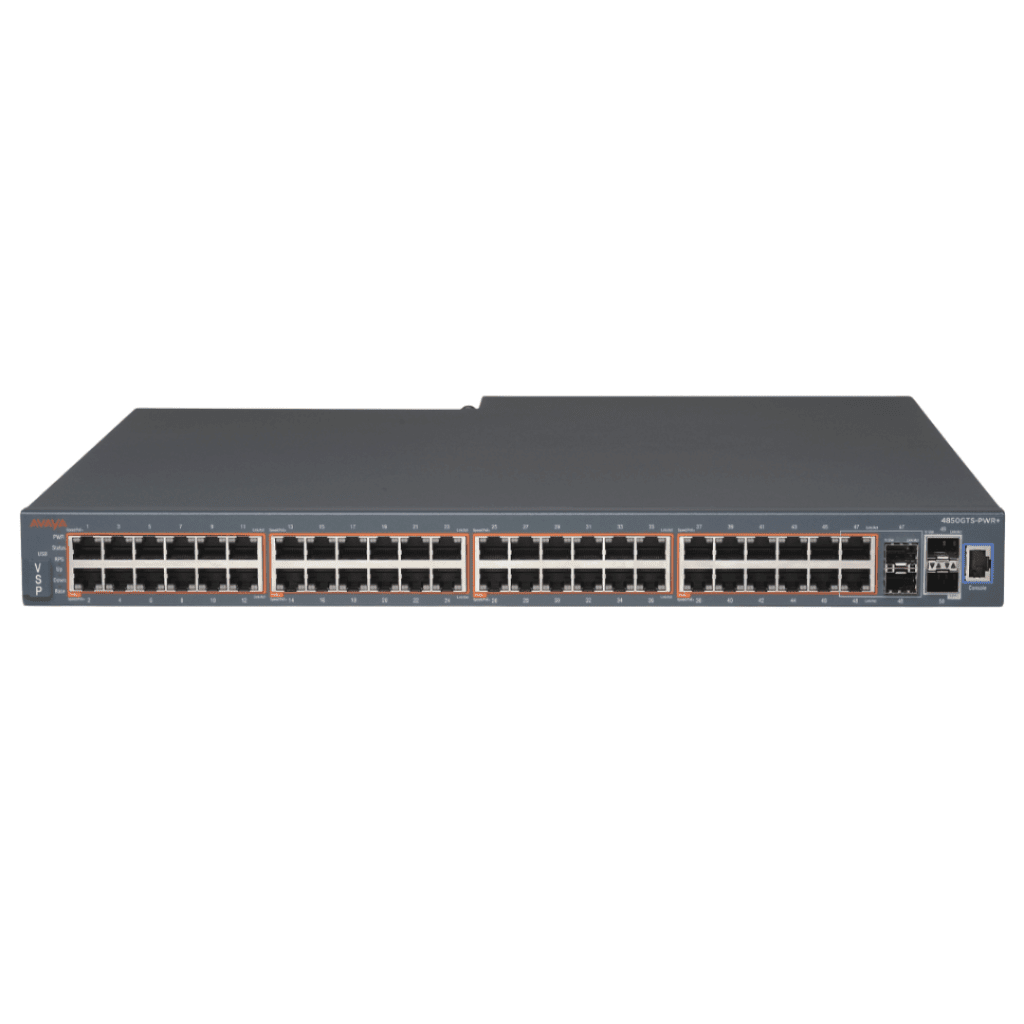

| Model | Avaya AL4800A88-E6 |
General
| Device Type | Switch - 48 ports - managed - stackable |
| Interface (Buy) Type | RJ-45 Console port provides industry standard serial port connectivity |
Performance
| RAM | Switch is configured with 1GB RAM |
Form Factor
| Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
| Expansion Slots |
2 shared SFP ports Plus 2 1/10Gigabit SFP+ ports |
| Interfaces | Wired/Switching/Routing |
| Compatible Slots | 1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 4.4cm – 1RU (H), 44.0cm (W), 43.68cm (D) |
| Weight | 11.98 Kg |
NETWORKING
| Ports | 48 10/100/1000BASE-T ports supporting 802.3at PoE+, including 2 shared SFP Uplink ports, plus 2 additional SFP+ Uplink ports |
| Connectivity Technology | LAN Base |
| Data Link Protocol | 48ports support both IEEE 802.3af POE and IEEE 802.3at POE+ |
| Data Transfer Rate | Plus 2 rear HiStack ports delivering up to 384Gbps of Stackable Chassis throughput |
MISCELLANEOUS
| Mix Features | supporting 802.3at PoE+, including 2 shared SFP Uplink ports, plus 2 additional SFP+ Uplink ports |
POWER
| Power Options |
Power and Thermal Supplied with 1 x 1000 watt Field Replaceable AC power supply Supports the addition of a second Field Replaceable AC power supply for redundancy or additional PoE Maximum Power 112 watts (without PoE Load) Thermal Rating 383 BTU/hr MaximumPoEpower 855 watts when operating on one 1000w power supply 1855 watts when operating on two 1000w power supply |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
