Specification
Brand | Aruba Networks, Inc. |

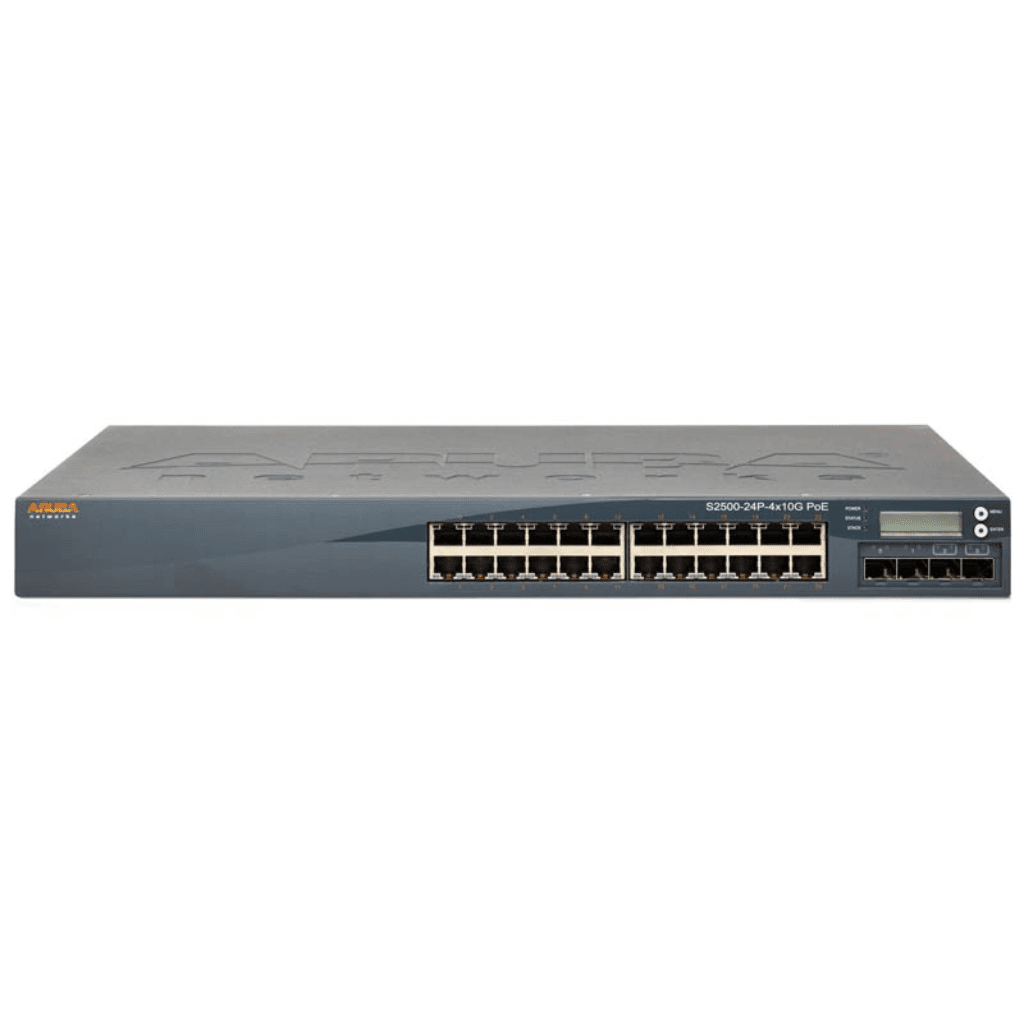

Model | Aruba S2500 |
Part Number | S2500-24P |
General
Device Type | Ethernet Switch |
Interface (Buy) Type | 10Gb Ethernet / 1Gb Ethernet |
Performance
RAM | Switch is configured with 1GB RAM |
Form Factor
Form Factor | Standalone |
EXPANSION / CONNECTIVITY
Expansion Slots |
Built-in Devices status LCD NETWORKING Ports Qty 24 MAC Address Table Size 12K entries Remote Management Protocol SNMP 2c Features dynamic IP mode Routing Protocol OSPF Compliant Standards IEEE 802.3af |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) |
H x W x D: 1.75” x 17.5” x 12.5” (4.4 cm x 44.5 cm x 30.5 cm) |
Weight | 12.1 lbs (5.5 kg) |
NETWORKING
Ports | Ethernet Technology Gigabit Ethernet (1000-Mbit/s) |
Connectivity Technology | Virtual interfaces (VLANs) : 4094 |
Data Link Protocol | 24ports support |
Data Transfer Rate | S2500-24P: 128 Gbps/95 Mpps |
Features | Maximum number of instances : 64 |
MISCELLANEOUS
Mix Features |
Encryption Algorithm MD5 |
POWER
Power Options |
Integrated power supply Autosensing 100-240 VAC, 150 watts (T models) Autosensing 100-240 VAC, 580 watts (P models) PoE budget: 400 watts |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
