Specification
Brand | Lenovo |

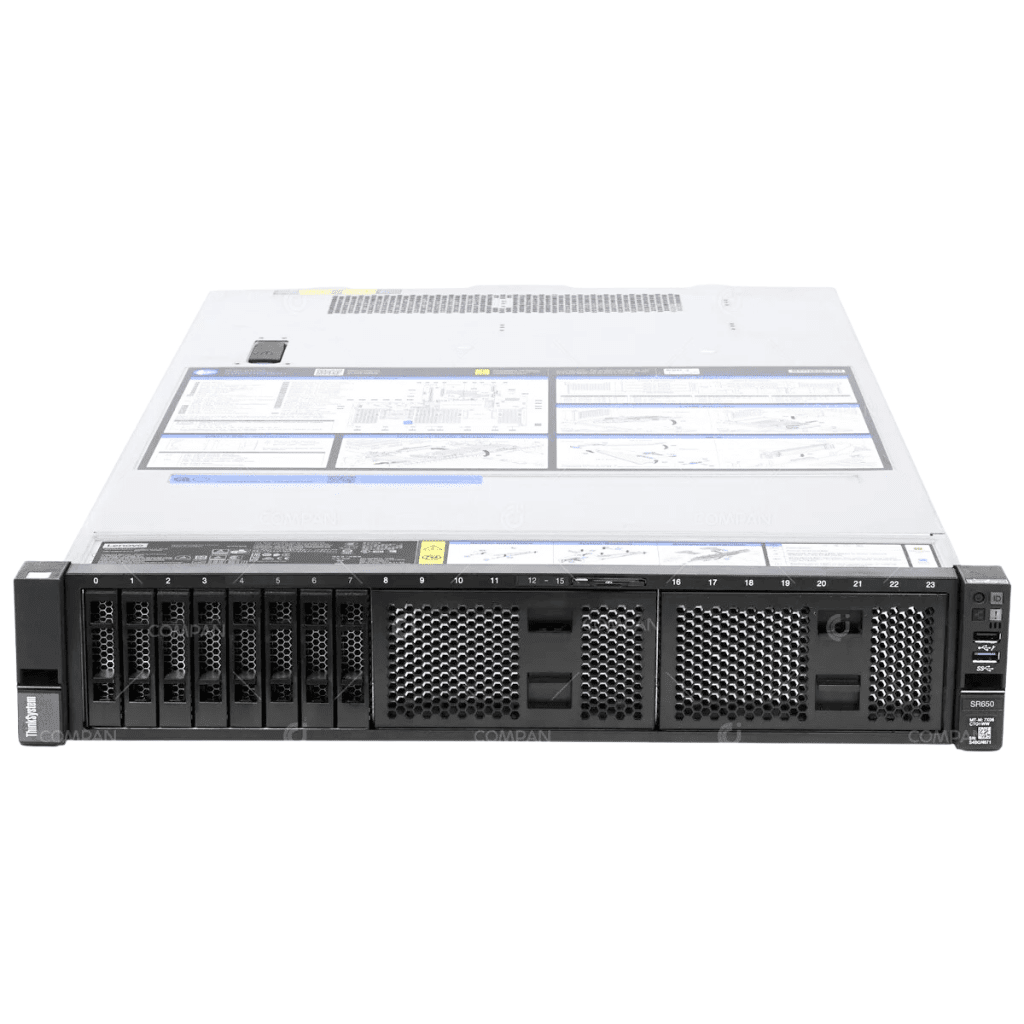

Model | Lenovo ThinkSystem SR650 Rack Server |
Product Type
Product type | Server |
Form Factor
Form Factor | Rack-mountable - 2U |
Processor
CPU Information | Processor Dual Intel® Xeon® Silver 4114 Processor Supported Processor Core options: 4, 6, 8, 10, 12, 14, 16, 18, 22 CPU Specifications Total Cores 10 Total Threads 20 Max Turbo Frequency 3.00 GHz Processor Base Frequency 2.20 GHz Cache 13.75 MB L3 Cache Max # of UPI Links 2 TDP 85 W |
Memory
Installed Memory | 64GB DDR4 |
Memory Type | Up to 7.5TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4 |
Hard Disk
Storage Option | HBA/RAID Support HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs |
Installed Hard Disk | 3 x1.2TB SAS Hard Drive |
GRAPHICS CONTROLLER
Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
Expansion Slots | Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter |
NETWORKING
Ports | 2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port |
POWER
Power Options | 2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | H: 8.73 cm (3.44 in), W: 44.40 cm (17.49 in), D: 68.40 cm (26.92 in) |
Weight | 29.5kg (64.9lbs) |
OPERATING SYSTEM
Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
