Specification
Brand | IBM |

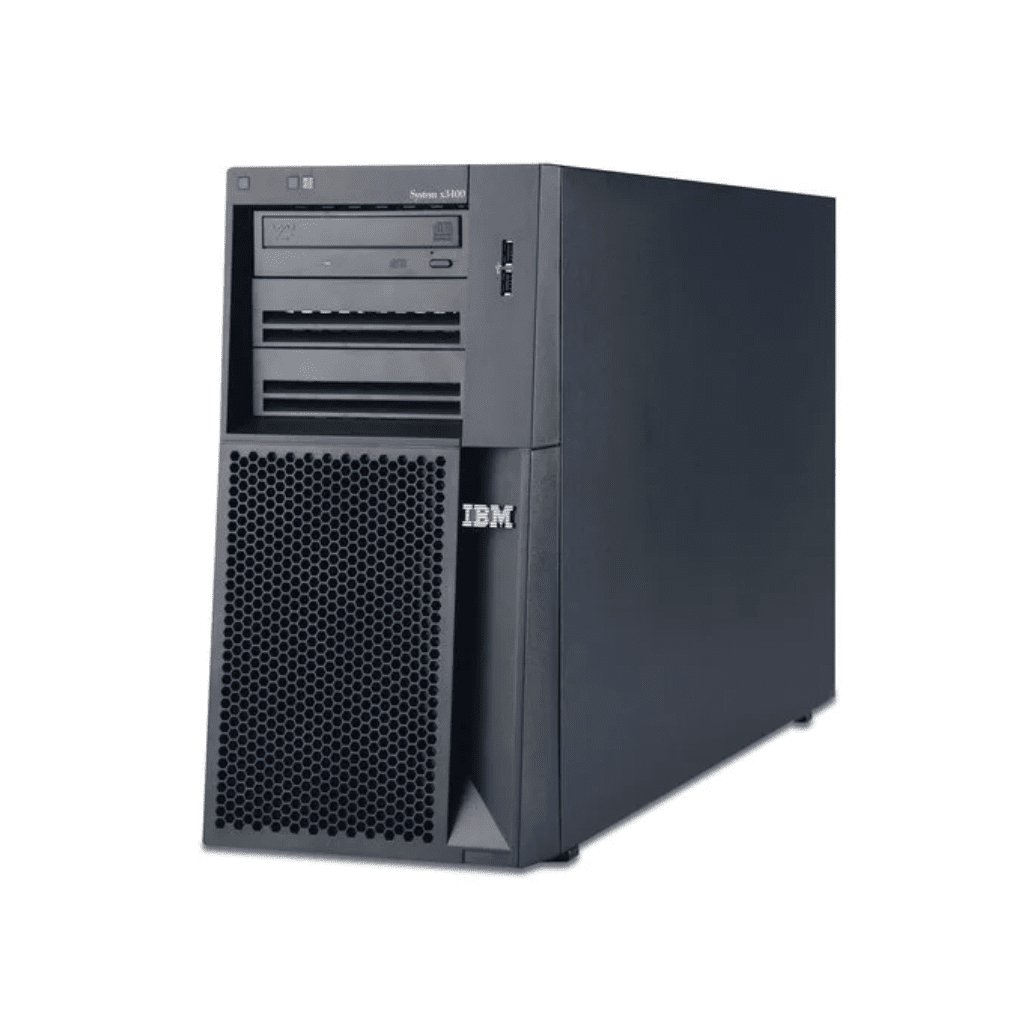

Model | IBM X3500 Workstation |
Part Number | X3500 |
Product Type
Product type | Workstation |
Form Factor
Form Factor | Rack-mountable - 2U |
Processor
CPU Information |
PROCESSOR / CHIPSET CPU Intel Xeon W5520 Max Turbo Speed 2.4 GHz Number of Cores Quad-Core Data Bus Speed 1333 MHz Chipset Type Intel 5500 Processor Main Features Hyper-Threading Technology, Intel Quick Path Interconnect Processor Socket LGA1366 Socket CACHE MEMORY Installed Size L3 cache - 8 MB Cache Per Processor 8 MB |
Memory
Installed Memory | 8GB DDR3 |
Memory Type |
RAM Memory Speed 1333 MHz Memory Specification Compliance PC3-10600 Features Memory Mirroring, registered Configuration Features 2 x 4GB MEMORY Max Supported Size 128 GB Form Factor DIMM 240-pin Slots Qty 16 Empty Slots 14 |
Hard Disk
Storage Option |
STORAGE CONTROLLER Type 1 x SAS - plug-in card - PCIe Storage Controller Name LSISAS1068 |
GRAPHICS CONTROLLER
Display Adapter |
GRAPHICS CONTROLLER Form Factor integrated Interface Type PCI Graphics Processor Matrox MGA G200e Video Memory 16 MB Video Interfaces VGA |
POWER
Power Options |
Type power supply - hot-plug Power Redundancy optional Power Redundancy Scheme1+1 (with optional power supply) Installed Qty Dual Power Supply Max Supported Qty 2 Min Operating Temperature 50 °F Nominal Voltage AC 120/230 V (50/60 Hz) Max Operating Temperature 82.4 °F |
OPERATING SYSTEM
Pre Install Os |
OS Provided: Type NON |
SERVICE & SUPPORT
Warranty | limited 01-month warranty |
