Specification
| Brand | Hewlett Packard |

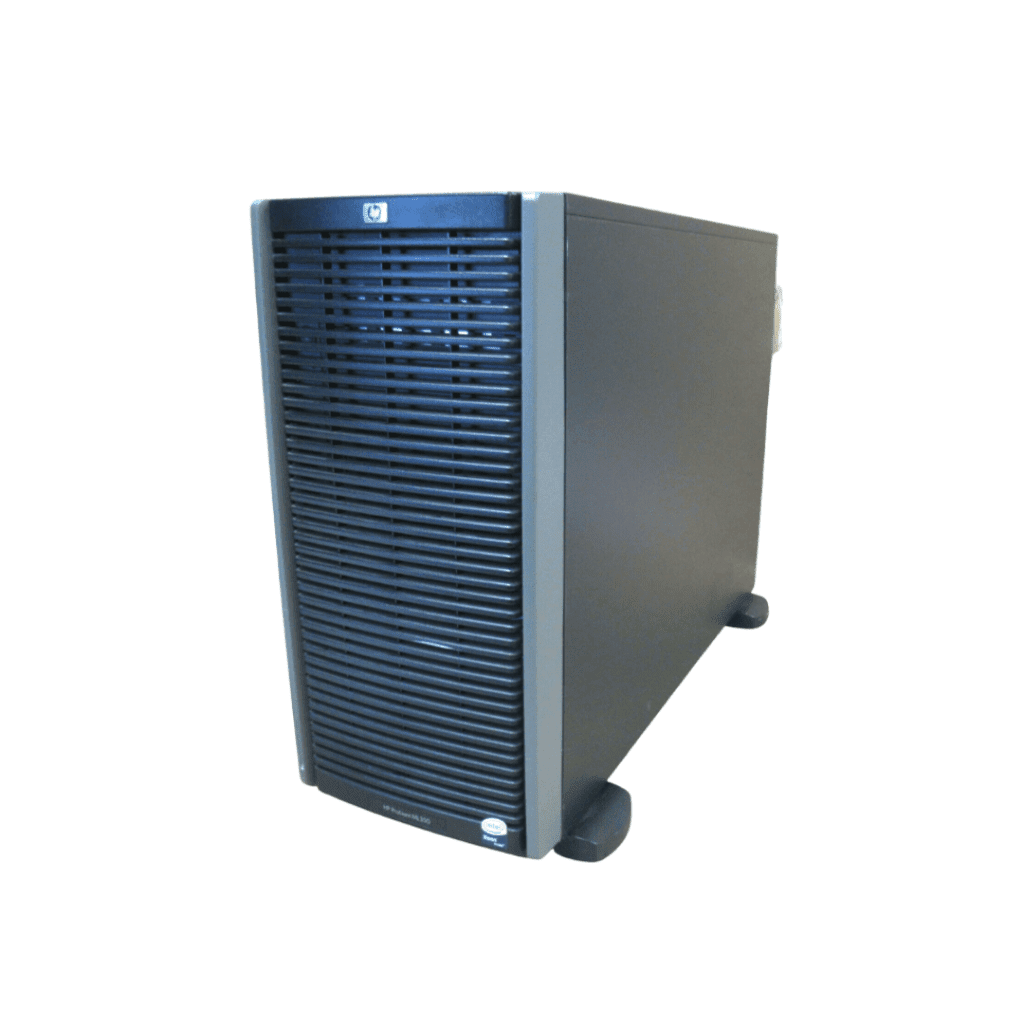

| Model | HP ProLiant ML350 G5 Server |
| Part Number | ML350 G5 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Tower 5U Rackable |
Processor
| CPU Information | Processor: Up to 2, Intel Xeon 5100, 5300, or 5400 series processors Core Count: Dual-Core, Quad-Core Maximum Cache: 12MB Maximum Clock Speed: 3.73GHz Intel® C236 Chipset HPE iLO (Firmware HPE iLO4 2.0 or later) 4GB NAND Supported Processors Six-Core Processors Intel® Xeon® X5675 (3.06GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Quad-Core Processors Intel® Xeon® X5672 (3.20GHz/4-core/12MB/95W,DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W, DDR3-1066, HT, Turbo) Processor Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) Processor Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W, DDR3-1333, HT, Turbo 2/2/3/3) Processor Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W, DDR3-1333, HT, Turbo 2/2/3/3) Processor Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W, DDR3-1333, HT, Turbo 2/2/3/3) Processor Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W, DDR3-1066, HT, Turbo 1/1/2/2) Processor Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W, DDR3-1333, HT, Turbo 1/1/2/2/3/3) Processor Intel® Xeon® L5630 (2.13GHz/4-core/12MB/40W, DDR3-1066, HT, Turbo 1/1/2/2) Processor Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W, DDR3-1066, HT, Turbo 1/1/2/2) Processor Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W, DDR3-800) Processor Intel® Xeon® E5606 (2.13 GHz/4-core/8MB/80W,DDR3-1066, Turbo 1/1/2/2/3/3) Processor Dual-Core Processors Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W, DDR3-800) Processor |
Memory
| Installed Memory | 16GB DDR2 |
| Memory Type | TDIMM Slots: 8 Maximum Capacity: 64GB Memory Type: DDR2 PC2-5300 Fully Buffered Maximum Memory Speed: 667 MHz Type Registered DDR2 Fully Buffered DIMMs (FB-DIMMs) Size 512MB, 1GB, 2GB |
Hard Disk
| Storage Option | Hard Drive Options: Up to 6, 3.5" SAS, SATA, or SSD Maximum Internal Storage: 12TB standard Maximum Throughput: 3Gb/s |
| Installed Hard Disk | 3 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | integrated ATI RN50, 64MB video standard 16-bit color: maximum resolution of 1600 x 1200 32-bit color: maximum resolution of 1280 x 1024 |
EXPANSION / CONNECTIVITY
| Expansion Slots | 6 PCI Express Gen2 x4 x8 5 Standard Height/Length PCI Express Gen2 x4 x8 8 Standard Height/Length PCI Express Gen2 x8 x16 11 Standard Height/Length PCI Express Gen2 x8 x8 14 Standard Height/Length PCI Express Gen2 x4 x8 17 Standard Height/Length PCI Express Gen2 x4 x8 20 Standard Height/Length x4 5.0G PCIe 2.0 provides 2.0 GB/s maximum bandwidth Serial 1 Network RJ-45 3 (1 dedicated for HP Integrated Lights-Out 2 (iLO2) Keyboard 1 Pointing Device (Mouse) 1 Graphics 1 SD slot 1 (internal) USB 2.0 Ports 6 (2 front, 2 rear, 2 internal) |
NETWORKING
| Ports | Network Controller: Embedded NC373i |
POWER
| Power Options | Dual Power Supply 800 W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 47 x 21.8 x 59.6 cm (18.5 x 8.59 x 23.46 in) |
| Weight | 31.8 kg (70 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
