Specification
| Brand | HP |

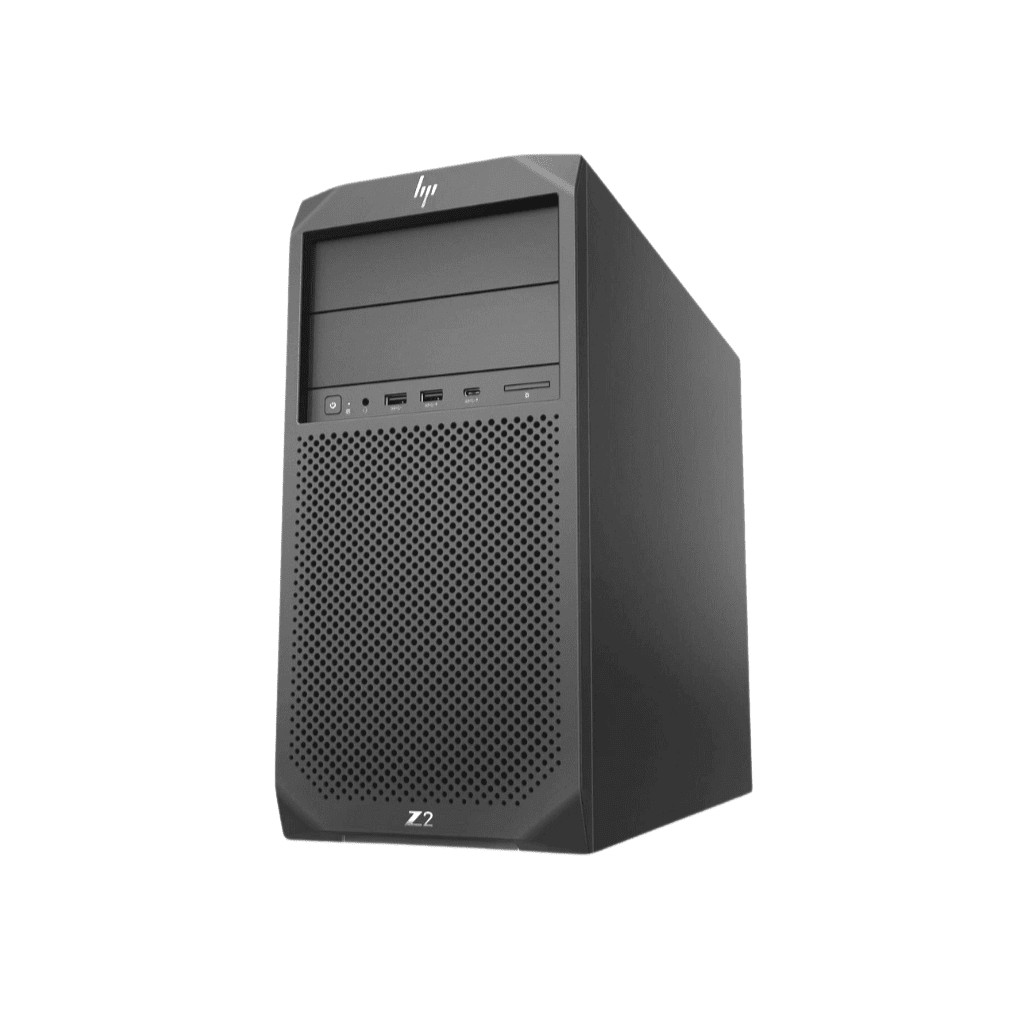

| Model | HP Z2 G4 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower or SSF |
Processor
| CPU Information | Single Intel Xeon E-2124G 3.4 GHz 24.75 MB cache and 8 cores Up to 3.8 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 130 W Supports Intel vPro technology Intel Xeon processor E-2286G Up to 4.9 GHz with Intel Turbo Boost Technology (4.0 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2278G Up to 5.0 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 16 MB cache and 8 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2276G Up to 4.9 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2274G Up to 4.9 GHz with Intel Turbo Boost Technology (4.0 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2244G Up to 4.8 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2236 Up to 4.8 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 12 MB cache and 6 cores DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2226G Up to 4.7 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon processor E-2224G Up to 4.6 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2176G processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.7 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2174G processor Up to 4.7 GHz with Intel Turbo Boost Technology (3.8 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2144G processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.6 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2136 processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency) 12 MB cache and 6 cores DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2126G processor Up to 4.5 GHz with Intel Turbo Boost Technology (3.3 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 80 W TDP Intel vPro Technology Intel Xeon E-2124G processor Up to 4.3 GHz with Intel Turbo Boost Technology (3.4 GHz base frequency) 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 71 W TDP Intel vPro Technology Intel Xeon E-2104G processor 3.2 GHz base frequency 8 MB cache and 4 cores Intel UHD Graphics P630 DDR4 memory up to 2666 MT/s data rate 65 W TDP Intel vPro Technology |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | (4) UDIMM slots supporting dual-channel memory 4 GB, 8 GB, 16, and 32 GB UDIMMs Supported configurations 8 GB (1 x 8 GB) DDR4-2666 ECC 16 GB (2 x 8 GB) DDR4-2666 ECC 32 GB (4 x 8 GB) DDR4-2666 ECC 32 GB (2 x 16 GB) DDR4-2666 ECC 64 GB (4 x 16 GB) DDR4-2666 ECC 64 GB (2 x 32 GB) DDR4-2666 ECC 128 GB (4 x 32 GB) DDR4-2666 ECC NOTE: Intel Core i5/i7 processors only support non-ECC memory. 4 GB (1 x 4 GB) DDR4-2666 non-ECC 8 GB (2 x 4 GB) DDR4-2666 non-ECC 8 GB (1 x 8 GB) DDR4-2666 non-ECC 16 GB (2 x 8 GB) DDR4-2666 non-ECC 32 GB (4 x 8 GB) DDR4-2666 non-ECC 32 GB (2 x 16 GB) DDR4-2666 non-ECC 64 GB (4 x 16 GB) DDR4-2666 non-ECC 64 GB (2 x 32 GB) DDR4-2666 non-ECC 128 GB (4 x 32 GB) DDR4-2666 non-ECC NOTE: ECC and non-ECC memory DIMMs cannot be mixed on the same system. Maximum Up to 128 GB |
Hard Disk
| Storage Option | Supported Hard Drives ATA 8.89 cm (3.5 in) Hard Drives 500 GB SATA 6 Gb/s 7200 HDD 1 TB SATA 6 Gb/s 7200 HDD 2 TB SATA 6 Gb/s 7200 HDD 4 TB SATA 6 Gb/s 7200 HDD 6 TB SATA 6 Gb/s 7200 HDD 500 GB SATA 7200 rpm SED SFF HDD 1 TB 7200 RPM SATA 8 GB SSHD Drive 1 TB Enterprise SATA 7200 HDD SATA SSD HP 256 GB SATA SSD HP 512 GB SATA SSD HP 1 TB SSD HP 2 TB SATA SSD HP 256 GB SATA SED Opal2 SSD HP 240 GB Enterprise SATA SSD HP 480 GB Enterprise SATA SSD PCIe SSDs for HP Workstations HP Z Turbo Drive G2 256 GB TLC PCIe SSD HP Z Turbo Drive G2 512 GB TLC PCIe SSD HP Z Turbo Drive G2 1 TB TLC PCIe SSD HP Z Turbo Drive G2 2 TB TLC PCIe SSD |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphics: K2200 4GB GDDR5 Supported Graphic Cards Entry 3D AMD Radeon Pro WX 3100 4 GB Graphics NVIDIA Quadro P400 2 GB Graphics NOTE: Two graphic cards supported. NVIDIA Quadro P620 2 GB Graphics Mid-range 3D Radeon Pro WX4100 4 GB GFX Graphics NVIDIA Quadro P2000 5 GB Graphics NOTE: Single graphic card supported. NVIDIA Quadro P1000 4 GB Graphics NOTE: Two graphic cards supported. High-end 3D Radeon Pro WX7100 8 GB Graphics NVIDIA Quadro P4000 8 GB Graphics NVIDIA Quadro P5000 16 GB Graphics NVIDIA Quadro RTX 4000 8 GB Graphics NVIDIA Quadro RTX 5000 16 GB Graphics NOTE: Requires 500 W PSU, not supported with 250 W PSU. NVIDIA Quadro RTX6000 24 GB Graphics NOTE: Requires 650 W PSU, not supported with 250 W or 500 W PSUs. |
EXPANSION / CONNECTIVITY
| Expansion Slots | Ports Front side (1) Power button (1) Headphone/microphone combo jack (1) USB 3.0 Type-A charging data port (1) USB 3.0 Type-A data port (1) USB 3.1 Gen 2 Type-C charging data port (optional) Back I/O ports (1) Audio Line-In (1) Audio Line-Out (2) DisplayPort (DP) 1.2 outputs (from Intel UHD graphics; select models) (1) Flexible module port output (optional flexible module required) (2) USB 2.0 ports (4) USB 3.0 ports (1) Serial port (optional) (2) PS/2 (optional) (1) Parallel port (optional) (1) RJ-45 (1) DC Input Internal I/O ports (1) USB 3.0 port (2) USB 2.0 ports NOTE: Available as 2 separate 2 x6 (3.0 x1, 2.0 x1) and 1 x6 (2.0 x1) header: supports one USB 3.0 Media Card Reader. Controller card HP Thunderbolt 3 PCIe 3-port I/O Card NOTE: Utilizes Flex IO port connection for flex port. Rear module options HP Flex IO module (VGA) HP Flex IO module (HDMI) HP Flex IO module (DP) HP Flex IO module (USB-C) HP Flex IO module (1 GbE LAN) Expansion slots (1) PCIe Gen3 x16 slot (1) PCIe Gen3 x4 slot/x16 connector (1) PCIe Gen3 x1 slot/x4 connector (1) PCIe Gen3 x1 slot/x4 connector (2) M.2 storage (PCIe Gen3 x4) (1) SD Card Reader (optional) (1) M.2 WLAN (PCIe Gen3 x1 and Intel CNVi) |
NETWORKING
| Ports | Intel I219LM PCIe GbE Controller (Intel vPro with Intel AMT 12.0) |
| Connectivity Technology | Intel X710-DA2 2-Port 10GbE SFP and NIC |
| Data Link Protocol | Intel X550-T2 2-Port 10GbE NIC |
| Data Transfer Rate | HP 10GbE SFP and SR Transceiver |
POWER
| Power Options | 650 W Power supply 90% efficiency Wide-ranging Active PFC 500 W Power supply 90% efficiency Wide-ranging Active PFC 250 W Power supply 85% efficiency Wide-ranging Active PFC Operating 5° to 35°C (41° to 95°F) Non-operating -40° to 60°C (-40° to 140°F) |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Minitower orientation 356 x 169 x 435 mm (14.0 x 6.7 x 17.1 in) |
| Weight | Typical weight 8.2 kg (18.07 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
SERVICE & SUPPORT
| Warranty | limited 06-month warranty |
