AED4550
What To Expect? The item has been slightly used | It may have minimal scratches on top. An original product that is lightly used and tested by experts for 100% functionality. * Item will be delivered in generic packaging with all compatible accessories
| Brand | HPE |

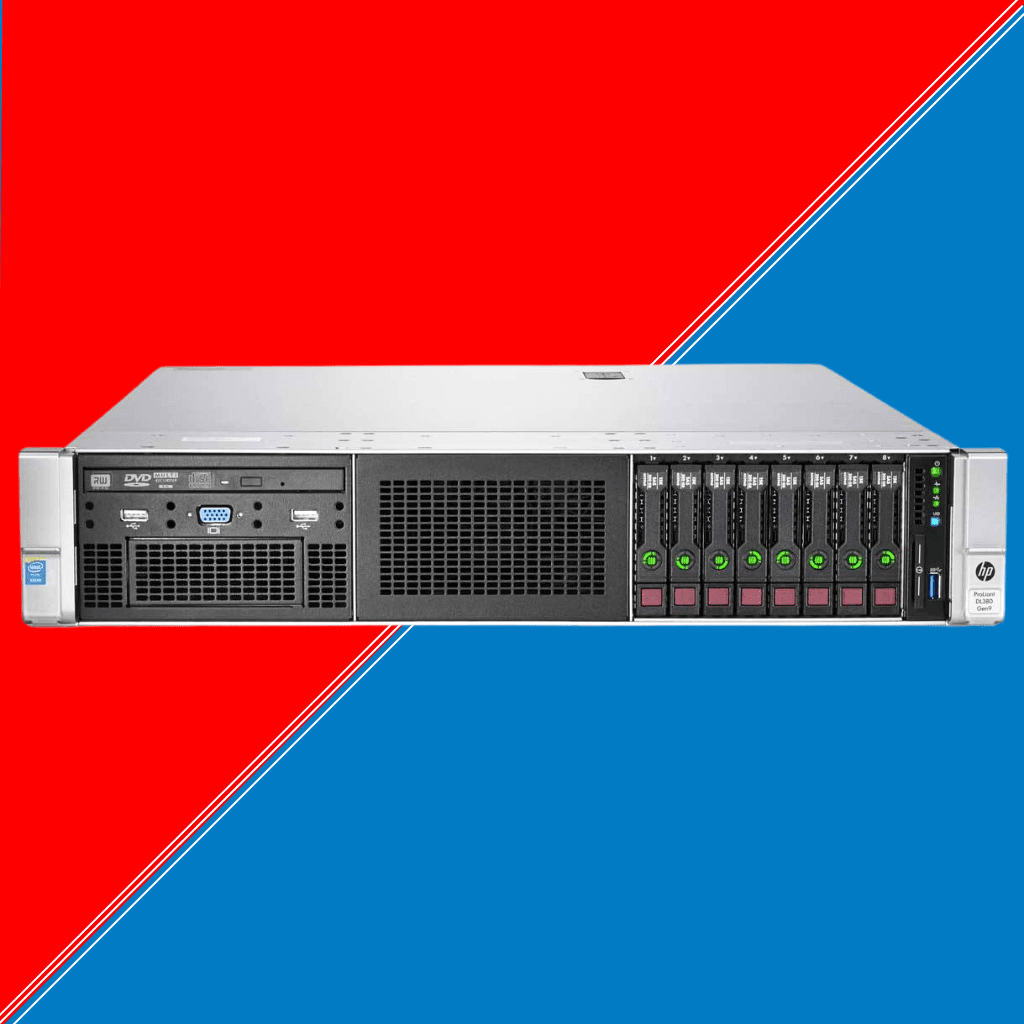

| Model | HPE DL380 Gen9 Server |
| Part Number | 859082-375 |
| Product type | Server |
| Form Factor | Rack-mountable - 2U |
| CPU Information |
Intel® Xeon® processor E5-2600 v3 and E5-2600 v4 product families CPU Intel Xeon E5-2680 V4 Installed Qty 2 Max Supported Qty 2 Processor Base Frequency 2.4Ghz Max Turbo Frequency 3.3 GHz Number of Cores 28 Total Threads 56 64-bit Computing Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Processor Socket FCLGA2011-3 Socke Intel C610 series chipset CACHE MEMORY 70 MB Intel® Smart Cache Cache Per Processor 35 MB |
| Installed Memory | 64GB DDR4 |
| Memory Type |
Configuration Features 4 x 16 GB 2133 MHz Form Factor DIMM 288-pin Memory type: DDR4 SmartMemory Features Registered, Online Spare Memory, Quad channel memory architecture, HP SmartMemory 12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz) 4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s |
| Storage Option |
Type 1 x RAID - PCIe 3.0 x8 Controller Interface Type SATA 6Gb/s / SAS 12Gb/s Storage Controller Name Smart Array P440ar with 2GB FBWC Channel Qty 8 RAID Level RAID 0,RAID 1,RAID 5,RAID 6,RAID 10,RAID 50,RAID 60,RAID 1 ADM,RAID 10 ADM Buffer Size 2 GB 4 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD 2 SFF Rear drive optional or 3 LFF Rear drive optional *NVMe support via Express Bay will limit max drive capacity |
| Installed Hard Disk | HDD SAS 2.5 |
| Display Adapter |
Integrated Matrox G200eH2 video standard with 16MB of Video RAM · 1280 x 1024 (32 bpp) 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory 16 MB Flash · 256 MB DDR3 with ECC (112 MB after ECC and video) |
| Expansion Slots |
Slots 2 CPUs, 3 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector) 2CPUs, 2 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector) 1CPU, 2 slots Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector Dedicated RAID card slot |
| Ports | 1Gb 331i Ethernet Adapter 4 Ports per controller |
| Power Options |
HPE 500W Flex Slot Platinum Hot Plug Power Supply Type power supply - hot-plug Power Redundancy yes Power Redundancy Scheme 1+1 Installed Qty 2 Max Supported Qty 2 Min Operating Temperature 50 °F Max Operating Temperature 95 °F |
| dimensions ( H x W x D) | 3.44 x 17.54 x 26.75 in |
| Pre Install Os |
OS Provided: Type no operating system OS Provided No operating system |
| Warranty | limited 06-month warranty |
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
