Specification
Brand | Dell |

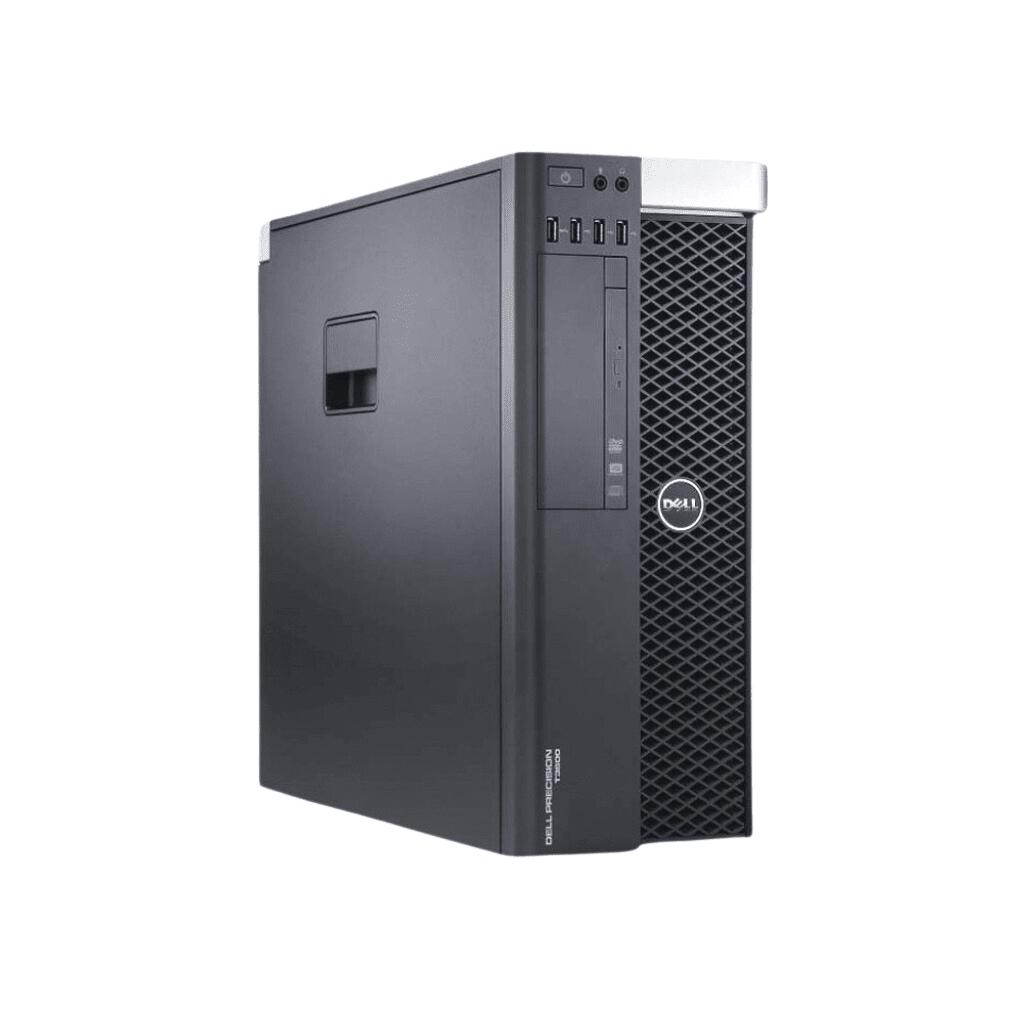

Model | Precision T3600 |
Part Number | Dell Precision T3600 |
Product Type
Product type | Workstation |
Form Factor
Form Factor | Tower |
Processor
CPU Information |
Intel® Xeon® E5-Series Quad-Core Total Cores 4 Total Threads 8 Supported Processors Intel® XEON_8 (E5-2665) Intel® Xeon®6-Core (E5-1660, E5-1650) Intel® Xeon® Quad Core (E5-1620, E5-1607, E5-1603 |
Memory
Installed Memory | 16GB DDR3 |
Memory Type |
Up to 64GB5 DDR3 SDRAM at 1600Mhz - 4 DIMMS Up to 8GB5 DDR3 SDRAM at 1333Mhz - 4 DIMMS The Dell Precision T3600 has a four-channel memory bus architecture. Dell recommends that all four memory channels be populated with DIMMs for maximum memory performance. Please note, that RDIMM ECC and NECC memory cannot be mixed. Maximum memory speed is tied to the processor. 1600MHz and 1333MHz memory will run at a reduced speed of 1066MHz when paired with the Intel® Xeon E5-1603 or Intel® Xeon E5-1607 processors. |
Hard Disk
Storage Option |
Supports one of the following: RAID 0, 1, 5, 10 with onboard SATA controller in chipset, SATA 6Gb/s. RAID 0, 1, 5, 10 with optional LSI RAID flex adapter, 12Gb/s SAS and SATA. RAID 0, 1, 5, 6, 10 with optional LSI 9364-8i PCIe adapter, 1GB memory, 12Gb/s SAS and SATA |
Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
Display Adapter |
Installed Graphic Card Nvidia Quadro K2000 2GB (GDDR5) Two PCIe 3.0 x16 slots for graphics and GPU computing adapters. Up to two NVIDIA Quadro M5000 SLI. SUPPORTING GRAPHICS AND GPU COMPUTING Support for two PCI Express® x16 Gen 2 or Gen 3 graphics cards up to 300W (total for graphics)1: High-End 3D NVIDIA® Quadro® 6000 NVIDIA Quadro K5000 NVIDIA Quadro 5000* Mid-range 3D AMD FirePro™ W5000 NVIDIA Quadro K4000 NVIDIA Quadro 4000 NVIDIA Quadro K2000 NVIDIA Quadro 2000 Entry 3D AMD FirePro V4900 NVIDIA Quadro K600 NVIDIA Quadro 600 Professional 2D (not ISV certified) AMD FirePro 2270 NVIDIA Quadro® NVS 510 NVIDIA Quadro® NVS 310 NVIDIA Quadro® NVS 300 * Supports NVIDIA SLI® GPU NVIDIA Tesla® K20C GPGPU - Supports Nvidia Maximus™ technology |
EXPANSION / CONNECTIVITY
Expansion Slots |
Bays: Two internal 3.5" hard drive bays; one external 5.25" bay; one external slimline optical bay Slots (all full length): Two PCIe x16 Gen 3; one PCIe x16 Gen 3 wired x4; one PCIe x4 Gen 2; one PCIe x1 Gen 2; One PCI 32bit/33MHz I/O Ports Front 3 - USB 2.0 1 - USB 3.0 1 - Microphone 1 - Headphone Internal 3 - USB 2.0 2 - SATA 6.0Gb/s Rear 5 - USB 2.0 1 - USB 3.0 2 - PS2 1 - Serial 1 - RJ45 1 - 1394a (optional) |
NETWORKING
Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
Power Options |
Power Supply (externally accessible, toolless, 80 Plus® Gold Certified, 90% efficient): 635W OR 425W |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | (HxWxD) 16.30" x 6.79" x 18.54"; 414mm x 172.6mm x 471mm |
OPERATING SYSTEM
Pre Install Os | OS Provided: Windows 10 Pro |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
