Specification
Brand | Cisco Systems Inc |

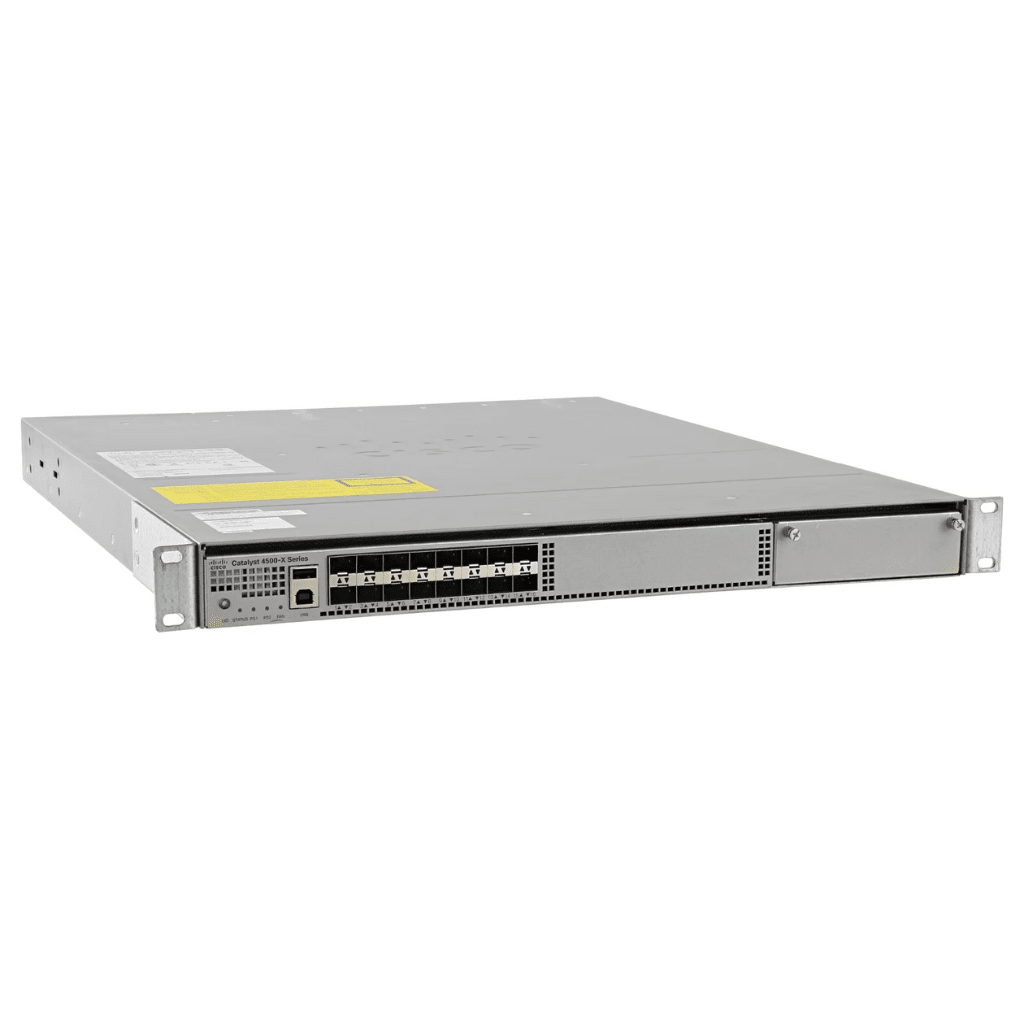

Model | Cisco WS-C4500X-16SFP+ |
Part Number | WS-C4500X-16SFP+ |
General
Device Type | 16x SFP+ |
Interface (Buy) Type | 16x SFP+ |
Performance
RAM | 2GB |
Flash Memory | Optional External Memory (SD Card) 32GB |
Form Factor
Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
Expansion Slots | Layer 2 hardware forwarding at 960 Gbps or 714.24 mpps Layer 3 performance of up to 160 Gbps or 240 mpps |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | 1.72 x 17.3 x 29.5 in. (4.4 x 43.9 x 74.9 cm) |
Weight | 35 lb (15.88 kg) |
NETWORKING
Ports | Ethernet 10Base-T/100Base-TX/1000Base-T |
Connectivity Technology | Connectivity Technology Wired |
Data Link Protocol | 2 x Dual-purpose ports uplinks (each dual-purpose uplink port has 1 10/100/1000 Ethernet port and 1 SFP-based Gigabit Ethernet port, 1 port active) |
Data Transfer Rate | Backplane Capacity 16 Gbps |
Features | LAN Base |
MISCELLANEOUS
Mix Features | Compliant Standards AS/NZS, AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, RoHS, UL 60950-1, VCCI Class A ITE |
POWER
Power Options | 1 x 750W AC Power Supplies Management Port 10/100/1000 Base-T |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
