Specification
Brand | Cisco Systems Inc |

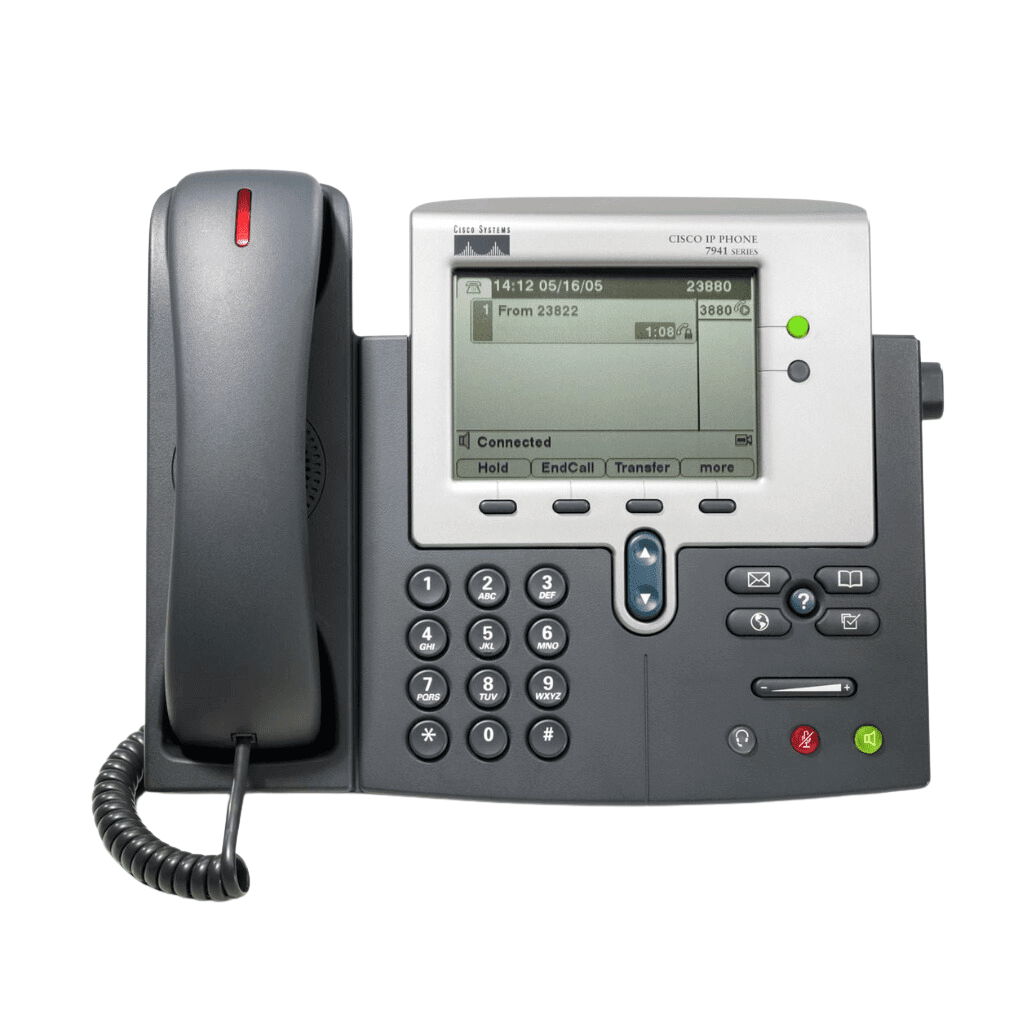

Model | CP-7941G |
Part Number | CP-7941G= |
General
Device Type | VoIP phone |
Interface (Buy) Type | 2 programmable line and feature keys |
EXPANSION / CONNECTIVITY
Expansion Slots | Connections Headset jack / RJ-9 ¦ Electronic hook switch (EHS) Hearing Aid Compatible Yes Placing / Mounting Wall-mountable, table mount Compliant Standards ADA, HAC (Hearing Aid Compatible) |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | 6.4 x 7.4 x 8.1 in. (164 x 188 x 205 mm ) |
Weight | Weight: Standard: 1102g (39 oz); Slimline: 1039g (37 oz). |
MISCELLANEOUS
Mix Features | Display: Large, 5-inch, high-resolution (320x222), 4-bit grayscale display Call Appearance: Two lines Fixed Feature Buttons: Messages, Directories, Settings, Services, Speakerphone (with LED indicator), Mute (with LED indicator), and Headset (with LED indicator) Navigation Keys: Two-way navigation (Up/Down) Programmable Line/Feature Keys: 2 programmable keys that support either lines (such as directory numbers), or call features (such as speed dialing). Softkeys: 4 interactive soft keys that guide users through call features and functions Button Module Expansion: No Speakerphone: Includes high-quality, 2-way speakerphone Audio: G.711 and G.729a audio compression Adjustable Stand: Stand is adjustable from flat to 60 degrees to provide optimum display viewing and comfortable use of all buttons and keys Wall-Mountable: Yes, requires optional Cisco 7900 Series Wall Mount Kit (CP-WALLMOUNTKIT=) Ethernet Connectivity: Dual Ethernet (10/100) line interface (PC Pass Through & Network Connection) Headset Port: Yes Message Waiting Indicator: Yes Adjustable Tilt Display: No Network Security: Positive device identity through X.509v3 Certificates, digitally signed images, cryptographically secure provisioning, and secure signaling and secure media with AES-128. Cryptography is not enabled by default and may only be enabled through a cryptographically enabled CUCM. The phone also contains an 802.1X supplicant and supports EAPOL pass-through. |
POWER
Power Options | Maximum power consumption: 3.29 watts Can be powered via 802.3af Power-over-Ethernet (PoE) or local AC power supply (sold separately) |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
