Specification
| Brand | Cisco Systems Inc |

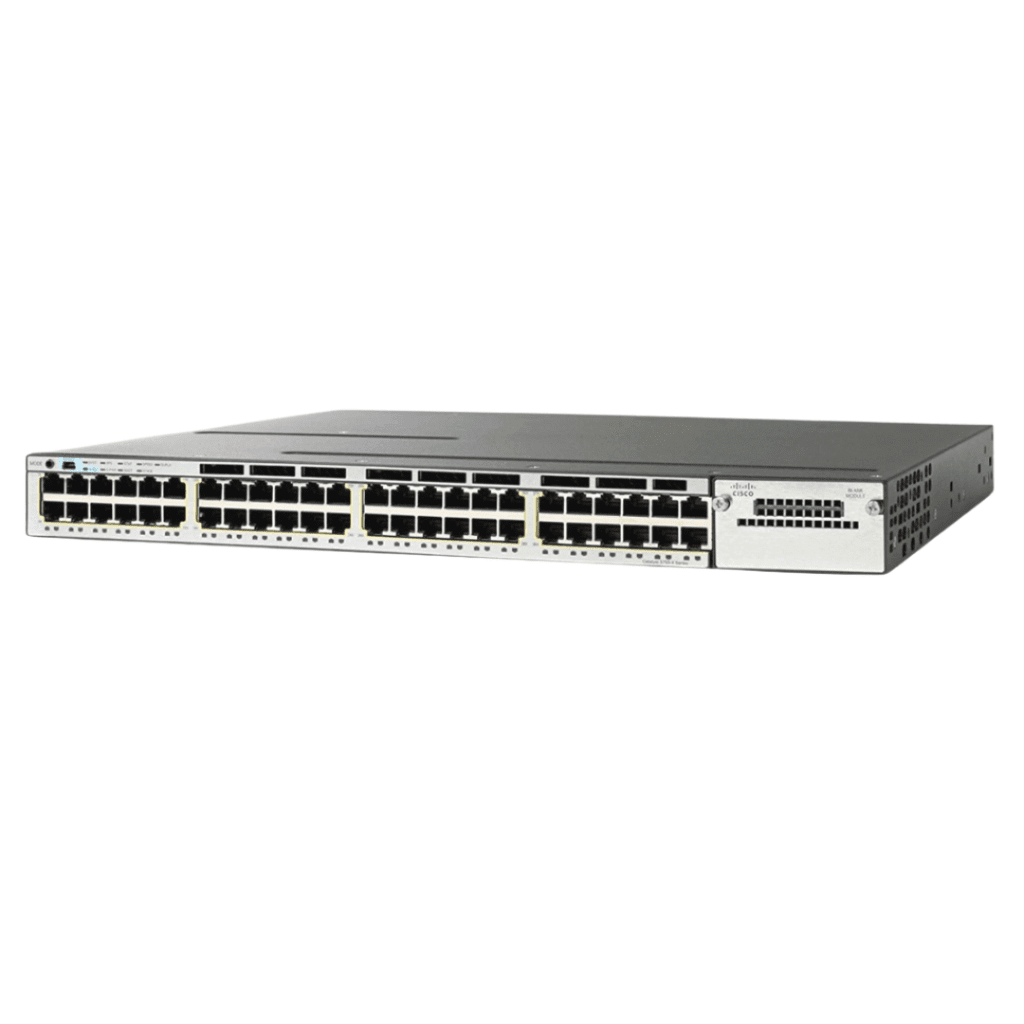

| Model | Cisco Catalyst WS-C3750X-48PF-S |
General
| Device Type | Switch - 48 ports - managed - stackable |
| Interface (Buy) Type | 48 x 100Base-TX RJ-45 ¦ 1 x RJ-45 management ¦ 4 x SFP (mini-GBIC) |
Performance
| RAM | 256MB RAM |
| Flash Memory | 64MB |
Form Factor
| Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
| Expansion Slots |
48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE+ ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 2 x network stack device 1 (total) / 1 (free) x expansion slot |
| Interfaces | Wired/Switching/Routing |
| Compatible Slots | 1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 17.5 in x 19.5 in x 1.8 in |
| Weight | 16.75 lbs |
NETWORKING
| Ports | 48 x 10/100/1000 (PoE+) |
| Data Link Protocol | Switching fabric bandwidth: 160 Gbps |
| Data Transfer Rate | Forwarding performance: 101.2 Mbps |
| Features | LAN Base |
MISCELLANEOUS
| Mix Features | Hot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN) |
POWER
| Power Options |
AC 120/230 V (50/60 Hz) 1+1 (with optional power supply) Redundant Power System (RPS) connector Environmental Parameters Min Operating Temperature 23 °F Humidity Range Operating 5 - 95% (non-condensing) Min Storage Temperature -40 °F Max Storage Temperature 158 °F |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
