Specification
Brand | Cisco Systems Inc |

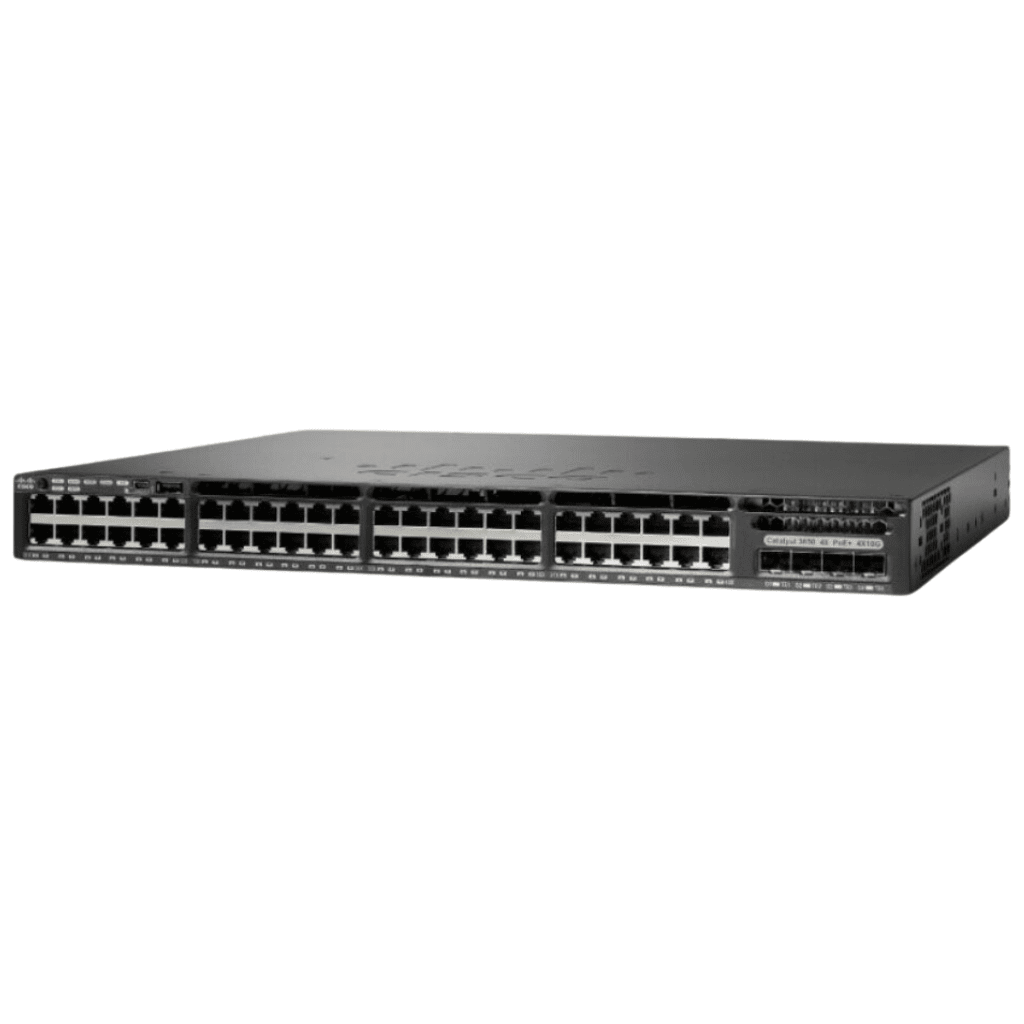

Model | Cisco Catalyst 3650 WS-C3650-48 POE+4x1G Switch |
Part Number | Catalyst 3650 48 POE+ |
General
Device Type | witch-28 ports-L3-Managed |
Performance
RAM | 4GB |
Flash Memory | 2GB |
Form Factor
Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
Expansion Slots | Expansion Slot(s) power redundant slot Accessory & Rack Moubt Kits · ACC-KIT-T1: Accessory kit · RACK-KIT-T1: Rack mount kit · 4PT-KIT-T1:Extension rails and brackets for four-point mounting Stacking module & cable · C3650-STACK-KIT: Stack Module · STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length · STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length · STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
Interfaces | Switching Capacity 176Gbps |
Compatible Slots | Console ports USB (Type-B), Ethernet (RJ-45) |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | Width 17.5 Inches (44.5 cm) Depth 17.625 Inches (44.8 cm) Height 1.73 Inches (4.4 cm) |
Weight | Shipping Weight 17.49 Kg |
NETWORKING
Ports | 48 x 10/100/1000 (POE+) + 4 x 1G SFP |
Connectivity Technology | Network Technology: 10/100/1000Base-T, 1000Base-X |
Data Link Protocol | Forwarding performance (64-byte packet size) 41.7 Mpps |
Data Transfer Rate | Forwarding Performance 77.37Mpps |
Features | LAN Base |
MISCELLANEOUS
Mix Features | Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A |
POWER
Power Options | Power supply PWR-C2-1025WAC Power Device Power supply - redundant - plug-in module Power Redundancy optional Voltage range (Auto) 100V-240V Power Consumption of standalone (in Watts) 99.5 (max) |
SERVICE & SUPPORT
Warranty | limited 03-month warranty |
