Specification
Brand | Cisco Systems Inc |

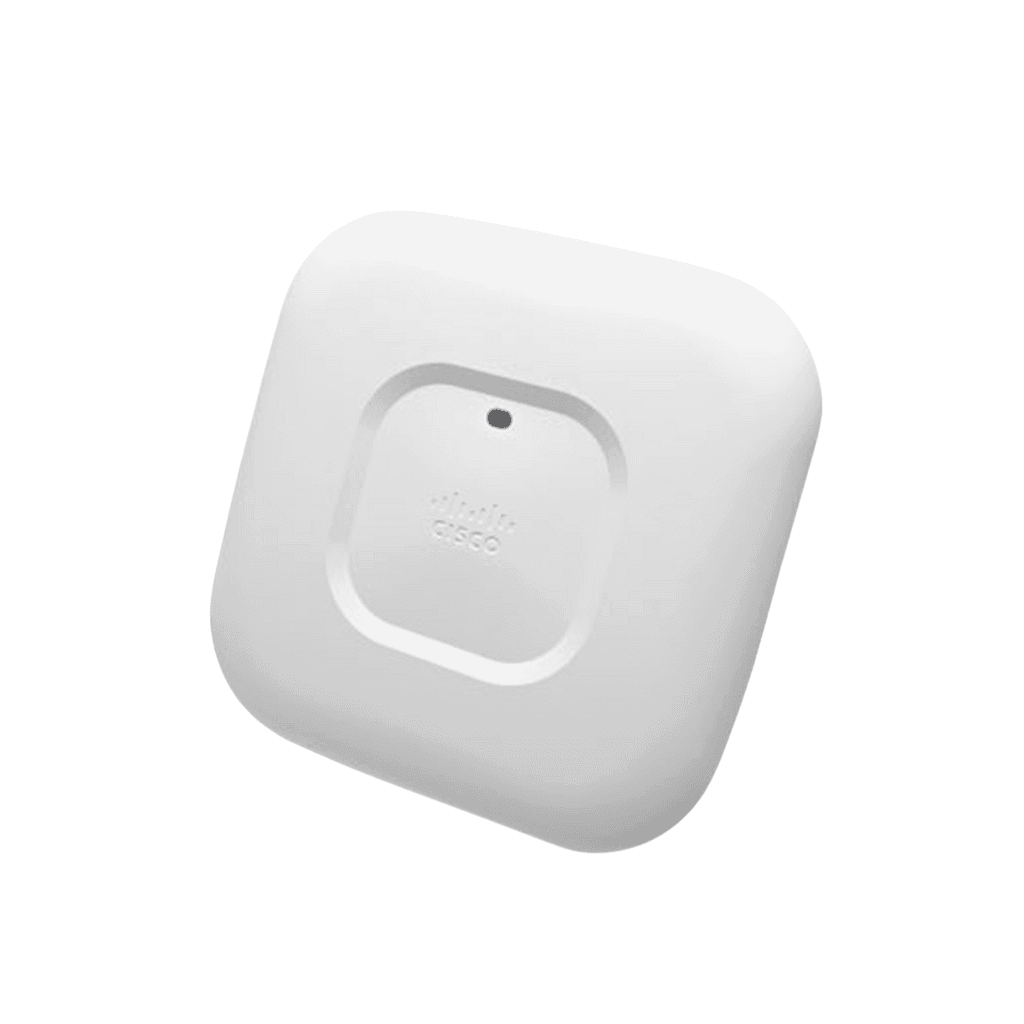

Model | Cisco Aironet CAP1702I-E-K9 |
General
Device Type | Radio access point |
Interface (Buy) Type | Management console port (RJ-45) |
Performance
RAM | 512MB SDRAM |
Flash Memory | 64MB |
Form Factor
Form Factor | External |
EXPANSION / CONNECTIVITY
Expansion Slots |
Compliant Standards ARIB STD-T33, ARIB STD-T66, ARIB STD-T71, AS/NZS 4268, CSA 22.2 No. 60950, EN 300 328, EN 301 489-1, EN 301 893, EN 60601-1-2, EN 60950-1, FCC Part 15, ICES-003, IEC 60950-1, RSS-210, UL 2043, UL 60950-1, VCCI Encryption Algorithm AES, PEAP, TKIP, TLS, TTLS, WPA, WPA2 MTBF 390000 hour(s) Authentication Method EAP-FAST, MS-CHAP v.2 |
Interfaces | 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
DIMENSIONS & WEIGHT
dimensions ( H x W x D) | 25 x 19 x 5 cm |
Weight | 1 kg |
NETWORKING
Ports | 10/100/1000BASE-T autosensing (RJ-45) |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 5.0) |
Data Transfer Rate | 867 Mbps |
Features | Auto-sensing per device, DFS support, Wi-Fi Multimedia (WMM) support, roaming function, Maximum Ratio Combining (MRC), 3T3R MIMO technology, Transmit Beam-forming (TxBF) ready, rogue access point detection, plenum-rated, CleanAir Express technology, Cisco BandSelect technology, Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD) |
MISCELLANEOUS
Mix Features |
Compliant Standards VCCI, ICES-003, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, EN 301.893, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, CAN/CSA C22.2 No. 60950-1, Directive 93/42/EEC, EMI/EMS Class B |
POWER
Power Options |
Power Consumption Operational 15 Watt Power Over Ethernet (PoE) Supported PoE |
SERVICE & SUPPORT
Warranty | limited 01-month warranty |
