Specification
| Brand | Apple |

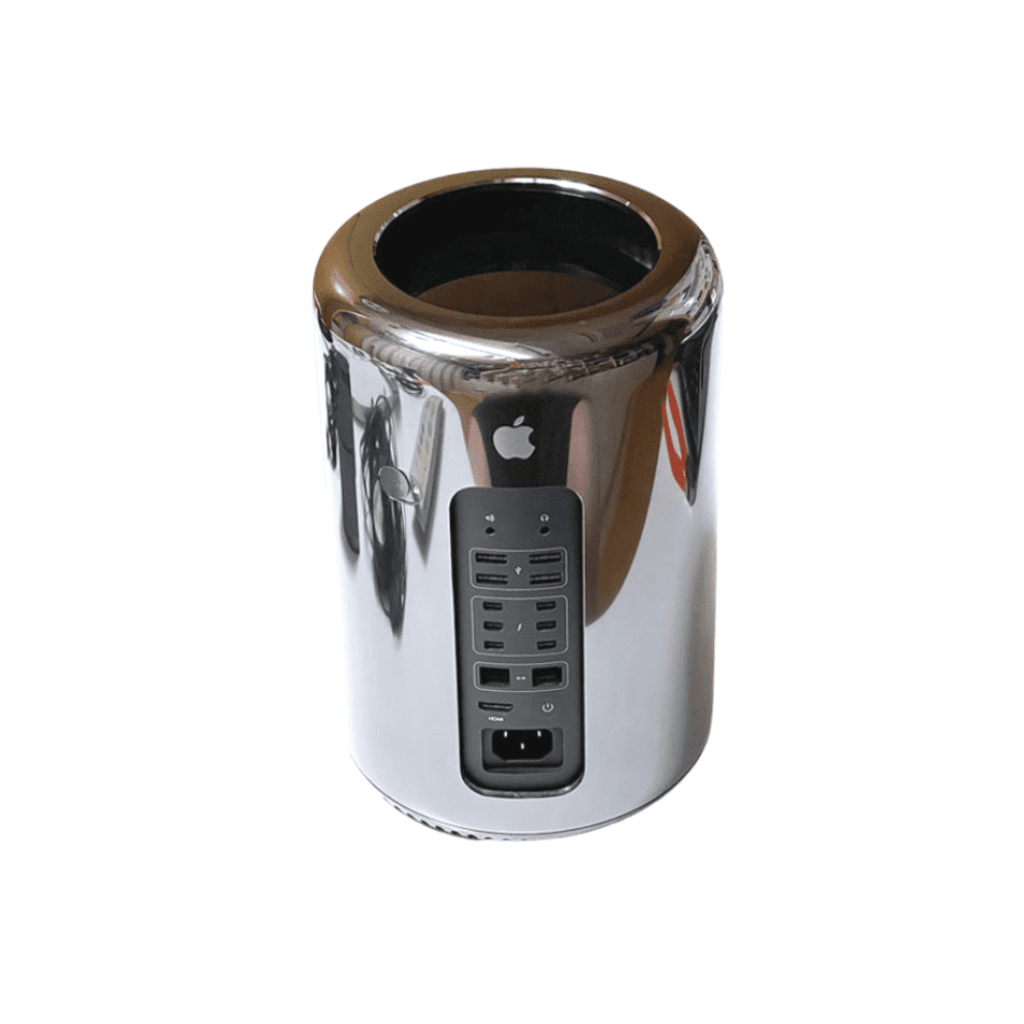

| Model | Apple Mac Pro A1481 |
| Part Number | A1481 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower 4U |
Processor
| CPU Information |
Processor Intel® Xeon® E5-1620 v2 Total Cores 4 Total Threads 8 Max Turbo Frequency 3.90 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.90 GHz Processor Base Frequency 3.70 GHz Cache 10 MB Intel® Smart Cache Bus Speed 0 GT/s # of QPI Links 0 TDP 130 W |
Memory
| Installed Memory | 16GB DDR4 |
| Memory Type |
16GB (four 4GB) of 1866MHz DDR3 ECC memory Configurable to 32GB (four 8GB) or 64GB (four 16GB) |
Hard Disk
| Storage Option |
256GB PCIe-based SSD Configurable to 512GB or 1TB2ple T2 Security Chip. |
| Installed Hard Disk | 256GB PCIe-based SSD |
GRAPHICS CONTROLLER
| Display Adapter |
Installed Graphic Card AMD AMD FirePro D300 2GB GDDR5 Dual AMD FirePro D300 graphics processors with 2GB of GDDR5 VRAM each 1280 stream processors 256-bit-wide memory bus 160GB/s memory bandwidth 2 teraflops performance Configurable to dual AMD FirePro D500, each with 3GB GDDR5 VRAM, 1526 stream processors, a 384-bit-wide memory bus, 240GB/s memory bandwidth, and 2.2 teraflops performance; or dual AMD FirePro D700, each with 6GB of GDDR5 VRAM, 2048 stream processors, 384-bit-wide memory bus, 264GB/s memory bandwidth, and 3.5 teraflops performance |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Connections and Expansion 4 USB 3 6 Thunderbolt 2 Dual Gigabit Ethernet HDMI 1.4 Ultra HD Wireless 802.11ac Wi-Fi wireless networking;3 IEEE 802.11a/b/g/n compatible Bluetooth 4.0 wireless technology Audio Combined optical digital audio output/analog line out minijack 3.5 mm headphone jack with headset support HDMI port supports multichannel audio output Built-in speaker Display Support Connect up to: Three dual-cable 5K displays Six Thunderbolt displays |
NETWORKING
| Connectivity Technology | Wireless Wi-Fi 802.11ac Wi-Fi wireless networking |
POWER
| Power Options |
In the Box Mac Pro, power cord |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) |
Height: 9.9 in Diameter: 6.6 in |
| Weight | Weight: 11 lb1 |
OPERATING SYSTEM
| Pre Install Os | OS Provided: macOS Mojave |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
